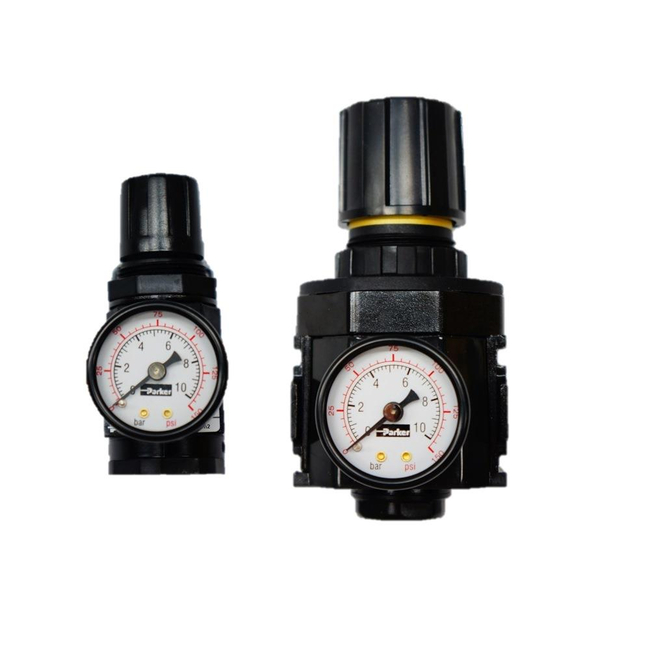

Obsolete: AR (AR200/320 /420) Series- Pressure Regulator with Locking Adjustment Knob.
Brand: Parker HannifinAutomation Korea Division's AR Series offers various pressure range settings to accommodate most applications.
The locking adjustment knob prevents accidental setting changes.
The modular design of the AR series connects with Air Unit Combination (AU Series)
Specifications
Brand
Body Material
- Aluminum
Gauge Port
- 1/8”, 1/4”
Maximum Inlet Pressure (bar)
- 10
Maximum Inlet Pressure (psig)
- 145
Operating Temperature (°C)
- 0° to 60° C
Operating Temperature (°F)
- 32° to 140° F
Port Type
- PT
Pressure Control Range (bar)
- bar: 0.5 to 8.5
Pressure Control Range (psig)
- psig: 8 to 125
Pressure Regulator Type
- Relieving
Product Type
- Pneumatic Regulator-Manual Adjustable
Seal Material
- NBR
