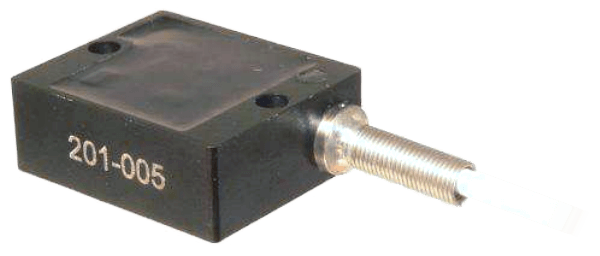

201 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 201 is a rugged, low-profile MEMS accelerometer designed for both static and dynamic applications.
The accelerometer is available in ranges from ±2 to ±100g and offers a signal conditioned and amplified output. Featuring gas damped MEMS sensing element and a LP filtering circuit, the model 201 provides a flat frequency response to 100 Hz over an operating temperature range of -40° to 125° C.
Features- ±2g to ±100g Dynamic Range
- Amplified Output
- Low Power Consumption
- Gas Damping
- #26 AWG Rugged Cable
- DC, Low Frequency Response
- 5-30 Vdc Excitation Voltage
1 - 7 of 7 Part Numbers
201-02-060
- Range - ± 2 G
- Cable - 60" (5 ft)
201-05-060
- Range - ± 5 G
- Cable - 60" (5 ft)
201-10-060
- Range - ± 10 G
- Cable - 60" (5 ft)
201-100-060
- Range - ± 100 G
- Cable - 60" (5 ft)
201-20-060
- Range - ± 20 G
- Cable - 60" (5 ft)
201-30-060
- Range - ± 30 G
- Cable - 60" (5 ft)
201-50-060
- Range - ± 50 G
- Cable - 60" (5 ft)
1 - 7 of 7 Part Numbers
Specifications
Accuracy
- ± 0.5 % of Full Scale Output - Non-Linearity
Applications
- Low Frequency Applications
- Motion Analysis
- Road Vehicle Testing
- Transportation Measurements
- Vibration & Shock Monitoring
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 100 ± 15 Hz - -3 dB Cut-Off Frequency
Cable Length
- 60 feet (18.3 metres)
Cable Material
- ETFE Insulated Leads
Compensated Temperature
- 0° to 85° C (32° to 185° F)
Constant Acceleration
- ± 2 to ± 100 G - Dynamic Range
Current
- < 5 mA - Excitation Current
Electrical Connectors
- 26 AWG Conductors
Environmental Protection
- IP65
Excitation Voltage
- 5-30 Vdc
Frequency
- 20 to 100 Hz - Traceable Amplitude Calibration
- 700 to 6,000 Hz - Natural Frequency
Insulation Resistance
- > 100 megaohms
Mounting
- M3 Screws
NACE & NIST
- NIST
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.5 - 4.5 Vdc - Full Scale Output Voltage Swing
- 2.5 ± 0.1 V - Zero Acceleration Output
Output Noise
- 50 to 80 μV RMS - Residual Noise
- 8 to 300 μg/√Hz RMS - Residual Noise
Resistance
- < 100 ohms - Output Resistance
Response Time
- < 100 milliseconds - Turn on Time
Sensitivity
- < 2 % - Transverse Sensitivity
- ± 0.020 %/°C - Thermal Sensitivity Shift
- 20-1,000 mV/g
Shock
- 5,000 G - Shock Survival
Storage Temperature
- -40° to 125° C (-40° to 250° F)
Thermal Drift
- ± 0.012 % of Full Scale Output/°C - Thermal Zero Shift
Torque
- 6 In/Lbs
