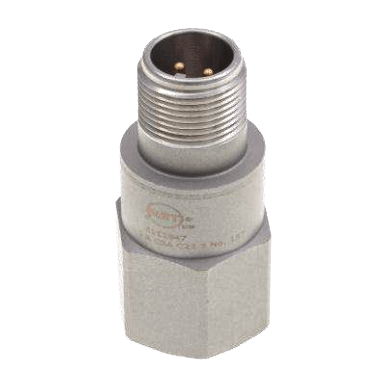

8011-01 & 8012-01 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 8011-01 & 8012-01 are internally shielded rugged IEPE accelerometers designed for harsh environments.
The accelerometers are available in ±10 g, ±80 g & ±500 g dynamic ranges and have a flat bandwidth up to greater than 16kHz. The model 8011-01 features a top exit MIL-C-5015 connector while the model 8012-01 features an integral cable. The units are hermetically sealed and are designed to operating in temperature ranges from - 55° to 125°C.
Features- ±10g, ±80g & ±500g Dynamic Ranges
- Wide bandwidth up to 16 kHz
- Case Isolated, Internally Shielded
- Hermetically Sealed, Welded
- Annular Shear Mode
- Reverse Wiring Protection
- Stable Temperature Response
1 - 12 of 12 Part Numbers
8011-01-010
- Electrical Connection Options - 2-Pin Connector
- Frequency - Standard
- Range - ± 10 G
8011-01-080
- Electrical Connection Options - 2-Pin Connector
- Frequency - Standard
- Range - ± 80 G
8011-01-500
- Electrical Connection Options - 2-Pin Connector
- Frequency - Standard
- Range - ± 500 G
8011LF-01-010
- Electrical Connection Options - 2-Pin Connector
- Frequency - Low Frequency Option
- Range - ± 10 G
8011LF-01-080
- Electrical Connection Options - 2-Pin Connector
- Frequency - Low Frequency Option
- Range - ± 80 G
8011LF-01-500
- Electrical Connection Options - 2-Pin Connector
- Frequency - Low Frequency Option
- Range - ± 500 G
8012-01-010
- Electrical Connection Options - Integral Cable
- Frequency - Standard
- Range - ± 10 G
8012-01-080
- Electrical Connection Options - Integral Cable
- Frequency - Standard
- Range - ± 80 G
8012-01-500
- Electrical Connection Options - Integral Cable
- Frequency - Standard
- Range - ± 500 G
8012LF-01-010
- Electrical Connection Options - Integral Cable
- Frequency - Low Frequency Option
- Range - ± 10 G
8012LF-01-080
- Electrical Connection Options - Integral Cable
- Frequency - Low Frequency Option
- Range - ± 80 G
8012LF-01-500
- Electrical Connection Options - Integral Cable
- Frequency - Low Frequency Option
- Range - ± 500 G
1 - 12 of 12 Part Numbers
Specifications
Accuracy
- ± 1 % - Non-Linearity
Approvals & Certifications
- CE
- NIST
- RoHS
Enclosure, Body Material
- Stainless Steel
Frequency
- 0.5 to 15,000 Hz at ± 3 dB
- 1 to 10,000 Hz at ± 10 %
- 28,000 to 42,000 Hz
Insulation Resistance
- > 100 megaohms at 100 Vdc
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output Load
- < 100 ohms - Output Impedance
Output Noise
- 0.00005 to 0.0003 G RMS - Residual Noise
Power Requirement
- 2 to 10 mA - Excitation Current
Sensitivity
- < 5 % - Transverse Sensitivity
- 10-500 mV/g
Sensor, Probe Material
- Ceramic
Shock
- 5,000 G
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Supply Voltage
- 18-30 Vdc - Compliance Voltage
- 8-12 Vdc - Bias Voltage
Temperature Effect
- ± 5 % - Temperature Response
Torque
- 24 In/Lbs
Update Time
- < 1 second
- Gearbox Monitoring
- General-purpose Usage
- Harsh Environments
- Industrial Applications
- Machine Monitoring
