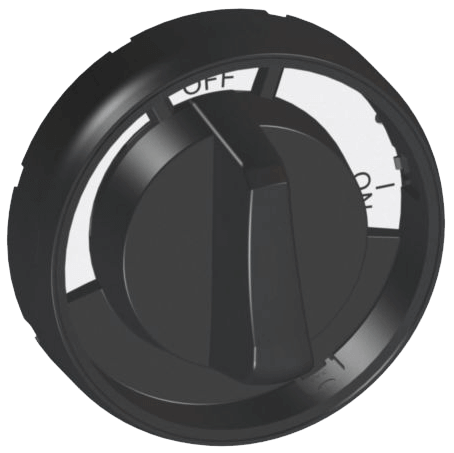

Actuators Series 8602/3

Actuators Series 8602/3

Brand: R. STAHL AG
Add Product to My Catalog

Actuators Series 8602/3 Actuators Series 8602/3 Actuators Series 8602/3 Actuators Series 8602/3 Actuators Series 8602/3 Actuators Series 8602/3 Actuators Series 8602/3
Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions.

In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series.

The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories.

A versatile set of accessories consisting of label holders and locking devices is available.
Features
  • Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light
  • 1 axial actuator can operate up to 4 contact elements from the 8082 series
  • Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

1 - 12 of 41 Part Numbers
217562
217562
R. STAHL Pushbutton
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Pushbutton
  • Product Type - 8602/4-001
  • Title Product Variant Technical Data - 8602/4-001 Push button
  • WebCode - 8602A

Mechanical Data

  • Assembly - 001
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Silicone-free - No
217563
217563
R. STAHL Mushroom Stay-Put Button with Key-Operated Switch Actuator EM-STOP
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Mushroom stay-put button With key-operated switch actuator EM-STOP
  • Product Type - 8602/4-009
  • Title Product Variant Technical Data - 8602/4-009 Mushroom key EM-Stop
  • WebCode - 8602A

Mechanical Data

  • Assembly - 009
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Silicone-free - No
217564
217564
R. STAHL Mushroom Stay-Put Button EM-STOP
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Mushroom stay-put button EM-STOP
  • Product Type - 8602/4-010
  • Title Product Variant Technical Data - 8602/4-010 Mushroom EM-Stop
  • WebCode - 8602A

Mechanical Data

  • Assembly - 010
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Silicone-free - No
223122
223122
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-B-C06
  • Title Product Variant Technical Data - 8602C3-054-B-C06 Indicator lamp bezel al
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Lens Colour - all colours
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.024 kg
223123
223123
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -60 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -60 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-S-C06
  • Title Product Variant Technical Data - 8602C3-054-S-C06 Indicator lamp bezel al
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Lens Colour - all colours
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Silicone
  • Silicone-free - Yes
  • Weight - 0.024 kg
223124
223124
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-B-C03
  • Title Product Variant Technical Data - 8602C3-054-B-C03 Indicator lamp bezel
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.024 kg
223125
223125
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-B-C04
  • Title Product Variant Technical Data - 8602C3-054-B-C04 Indicator lamp bezel
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.024 kg
223126
223126
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-B-C05
  • Title Product Variant Technical Data - 8602C3-054-B-C05 Indicator lamp bezel
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.024 kg
223127
223127
R. STAHL Indicator Lamp Bezel
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -60 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -60 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Indicator lamp bezel
  • Product Type - 8602C3-054-S-C01
  • Title Product Variant Technical Data - 8602C3-054-S-C01 Indicator lamp bezel
  • WebCode - 8602A

Mechanical Data

  • Assembly - 054
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Silicone
  • Silicone-free - No
  • Weight - 0.024 kg
223691
223691
R. STAHL Pushbutton
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Pushbutton
  • Product Type - 8602C3-001-B
  • Title Product Variant Technical Data - 8602C3-001-B Pushbutton
  • WebCode - 8602A

Mechanical Data

  • Assembly - 001
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.034 kg
223692
223692
R. STAHL Pushbutton
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -60 °C ... +70 °C
  • Ambient temperature max. - +70 °C
  • Ambient temperature min. - -60 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • Inmetro dust certificate - UL-BR 14.0380U
  • Inmetro gas certificate - UL-BR 14.0380U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Pushbutton
  • Product Type - 8602C3-001-S
  • Title Product Variant Technical Data - 8602C3-001-S Pushbutton
  • WebCode - 8602A

Mechanical Data

  • Assembly - 001
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Silicone
  • Silicone-free - No
  • Weight - 0.034 kg
223693
223693
R. STAHL Mushroom Stay-Put Button with Key-Operated Switch Actuator EM-STOP
Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light

1 axial actuator can operate up to 4 contact elements from the 8082 series

Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"

Ambient Conditions

  • Ambient temperature - -20 °C ... +60 °C
  • Ambient temperature max. - +60 °C
  • Ambient temperature min. - -20 °C

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 13 ATEX 1019 U
  • ATEX gas certificate - PTB 13 ATEX 1019 U
  • Certificates - ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (STV), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC Db
  • Dust explosion protection IECEx - Ex tb IIIC Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC Gb
  • Gas explosion protection IECEx - Ex eb IIC Gb
  • IECEX dust certificate - IECEx PTB 13.0047 U
  • IECEX gas certificate - IECEx PTB 13.0047 U
  • UL gas certificate - E182378 V4 S2

General

  • Functional Description - Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN60529. It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series. The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the "latching/spring return" and/or "key not removable" functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
  • Highlights - Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, double pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer and signal light 1 axial actuator can operate up to 4 contact elements from the 8082 series Key-operated switch and rotary switch can be coded at any time as "latching/spring return" and/or "key not removable"
  • Product Description - Mushroom stay-put button With key-operated switch actuator EM-STOP
  • Product Type - 8602C3-009-B
  • Title Product Variant Technical Data - 8602C3-009-B Mushroom key EM-STOP MS1
  • WebCode - 8602A

Mechanical Data

  • Assembly - 009
  • Closing - Standard MS01
  • Degree of protection (IP) - IP66
  • Enclosure material - Polyamide
  • Mounting - Thread type
  • Packaging unit - 1
  • Seal - Standard
  • Silicone-free - Yes
  • Weight - 0.075 kg
1 - 12 of 41 Part Numbers
Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
