DEPRO-FRM5-24V-5A Fused Relay Module.png

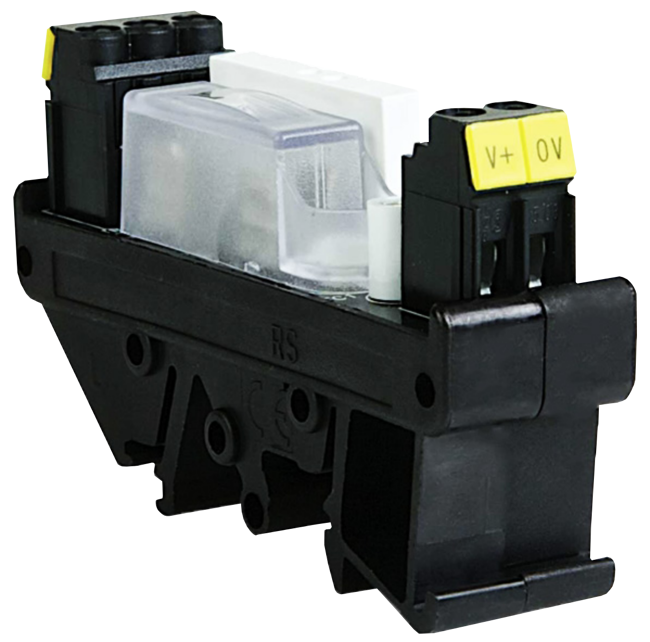

DEPRO-FRM5/24V/5A Fused Relay Module

Brand: Emphatec
Add Product to My Catalog

The DEPRO-FRM5/24V/5A combines a relay module and a fuse terminal to make a compact module that saves panel space and installation time.

The output is a 1 form C (SPDT) contact with a fuse in series with the common connection.

The contact is rated 5 A maximum at 30 Vdc/230 Vac. To increase vibration resistance the relay is soldered to the PCB. A green LED illuminates when the coil is energized.
Features
  • Relay with fused contacts

  • 24 Vdc coil, 5 A contacts

  • Compact, requires just 20 mm of DIN rail

  • Certified for Class 1 Division 2 and Zone 2 applications cCSAus

    • Specifications

    Brand

    Approvals & Certifications

    • CSA (C,US) Class I, Div. 2, Groups A, B, C, D Temperature Code T6, Ex NA IIC, Zone 2, AEx NA IIC

    Current

    • Coil: 7 mA Nominal

    Electrical Rating

    • Contact: 5 A, Max.
    • Fuse: 5 A at 30 Vdc

    Indication

    • Status LED: Green

    Mounting

    • DIN Rail Mounting

    Switch Type

    • SPDT

    Termination

    • 26 to 12 AWG, 6 mm Stripping Length

    Torque

    • 0.5 to 0.6 Nm

    Voltage

    • Coil: 24 Vdc Nominal
