Kele Alarm Indication Station, RAD-1

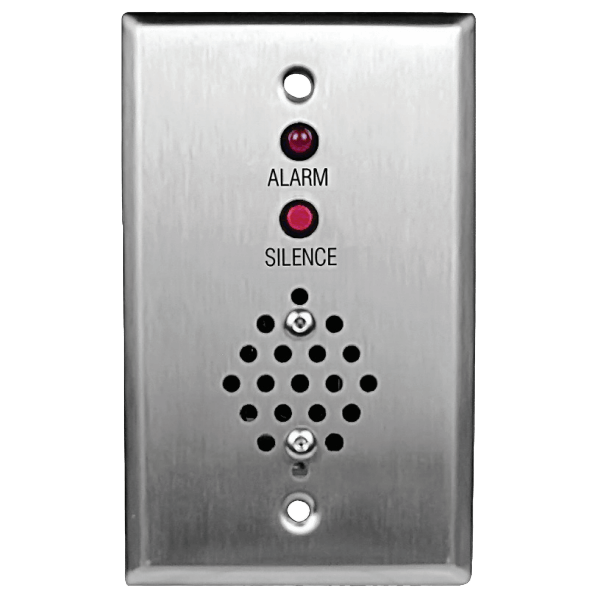

RAD-1 Alarm Indication Station

Brand: Kele
Add Product to My Catalog

The RAD-1 is a wall mounted remote alarm indication station mounted on a stainless steel plate.

Any contact closure alarm initiating device that can switch 24 Vac or Vdc can be used with the RAD-1.
Features
  • Red alarm LED
  • Alarm horn, continuous tone or pulsed
  • Alarm horn silence switch
  • Adjustable alarm delay time
  • Adjustable alarm repeat time
  • Alarm status SPDT relay
  • Relay operates with the alarm horn option

Specifications

Brand

Alarm

  • Contact Closure Alarms
  • Continuous or Pulsed Tone
  • SPDT, Rated 0.5 A at 24 Vac - Alarm Status Relay
  • SPDT, Rated 1 A at 30 Vdc - Alarm Status Relay

Approvals & Certifications

  • RoHS

Connection Style

  • Screw Terminals

Delay Time

  • Alarm Delay Time: 1 to 31 seconds in One-second Increments
  • Alarm Delay Time: 10 to 310 seconds in 10-second Increments

Display

  • Red LEDs

Electrical Connectors

  • 22 to 14 AWG Wires

Materials of Construction

  • Stainless Steel - Plate

Mounting

  • Plate
  • Screw Mount
  • Wall Mounted

Output Noise

  • Alarm Horn: Continuous or Pulsed Tone 70 Db Min.

Relay Operation

  • Energized or De-Energized

Supply Voltage

  • 24 Vac at 100 mA
  • 24 Vdc at 34 mA

Switch Type

  • SPDT
