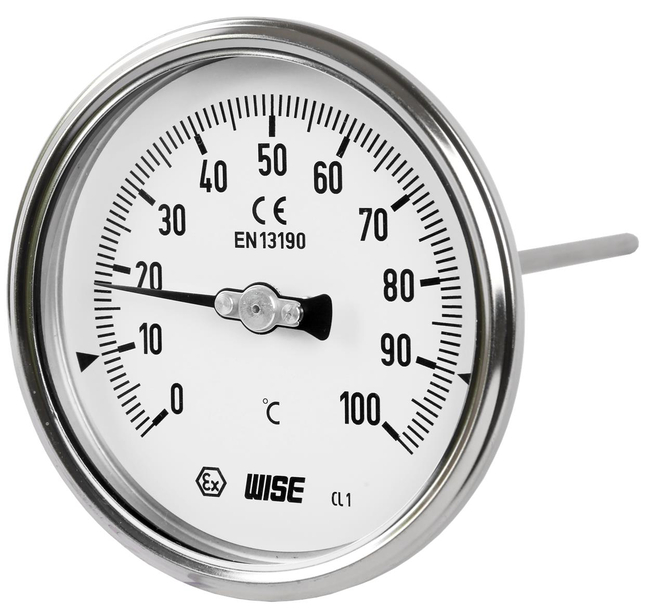

Hermetically Sealed Case Bi-Metal Thermometer T112
Brand: Wise Control IncThis bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation, and direct monitoring for the fluid.
It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Case
- Hermetically Sealed, 316L Stainless Steel
Cover
- Hermetically Sealed, 316L Stainless Steel
Dial
- White Aluminum with Black Graduations
Location of Stem
- Center Back Connection, Direct
Nominal Diameter
- 65, 75, 100, 125 & 150 mm
Options
- ± 1.0 % of Full Scale
- Not Available with Diameter 65 mm
Pointer
- Black Painted Aluminum Alloy
Stem
- 6.0, 6.4, 8.0 & 10.0 mm Diameter
- 304, 316 & 316L Stainless Steel
- Maximum
Stem, Process Connection
- 1/4", 3/8", 1/2", 3/4" PT, NPT & PF
Temperature Element
- Coiled BiMetal
Window Material
- Glass
Working Range
- Maximum
Zero Adjustment
- External
