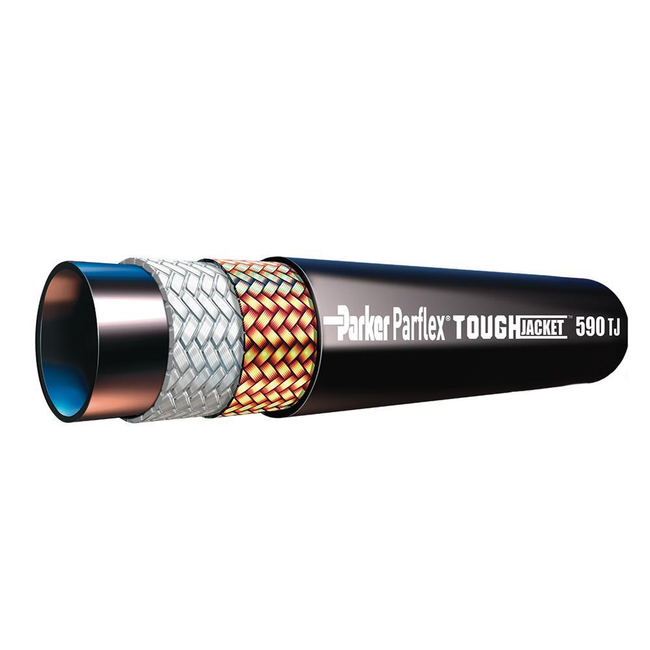

ToughJacket 590TJ Abrasion Resistant Hydraulic Hose
Brand: Parker HannifinThe TOUGHJacket™ 590TJ compact hydraulic hose from Parker Parflex is a lightweight and flexible thermoplastic hose featuring the abrasion-resistant TOUGHJacket cover.
Specifications
Brand
Media
- Hydraulic Fluids, Lubricants
Maximum Working Temperature
- 121°C (250°F)
Minimum Working Temperature
- -40°C (-40°F)
Hose I.D.
- ¼” - 1” (6 - 25 mm / Size: -4 - -16)
Color
- Black
Minimum Bend Radius
- 1¾” - 8" (44 - 203 mm)
Maximum Working Pressure
- 2,000 - 5,000 psi (13.8 - 34.5 MPa / 138 - 345 bar)
Weight per Length
- 0.21 to 0.88 kg/m (0.14 to 0.59 lbs/ft)
Hose Type
- General-purpose
Compatible Fittings
- 43 or 56 Series - Dependent on Size
Hose O.D.
- 0.53" - 1.43" (13 - 36 mm)
Vacuum Rating
- 711.2 mmHg (28 inHg)
Industry Standards
- MSHA
- Fluid Handling
- Hydraulic
- Manufacturing / Industrial
- Construction
- Agriculture / Forestry
- Transportation
