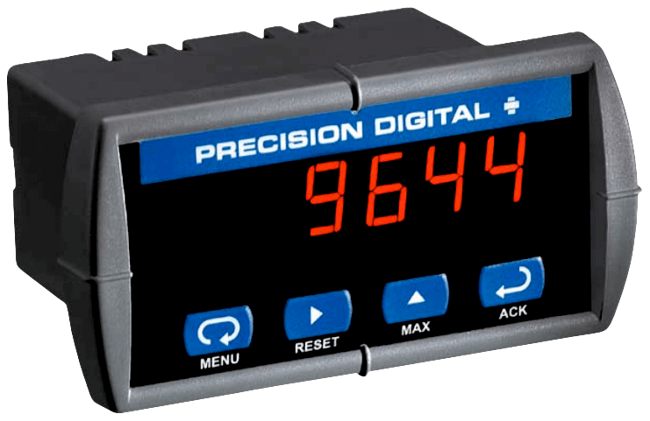

Precision Digital PD644 DC Meter

PD644 Javelin D High-Voltage DC Digital Panel Meter

Brand: Precision Digital Corporation
Add Product to My Catalog

The Javelin D is an easy-to-use, 1/8 DIN digital voltmeter that accepts a DC voltage input up to 300 VDC.

It features a built-in 4-20 mA isolated transmitter, RS-485 serial communication capability, and a NEMA 4X/IP65 rated front.

The four front panel buttons provide quick and simple access to programming and operation functions. There are no jumpers, and no need to ever open the case.

After completing setup of one meter, additional meters can be cloned using the time-saving copy function.

The optional Form C relays can be used for alarm indication or process control applications.

The Modbus® RTU serial communication upgrade enables the Javelin D Digital Voltmeter to operate as a Modbus® slave in RS-485 multi-point data acquisition systems.
Features
  • 0 to 300 Vdc Input
  • NEMA 4X, IP65 Front
  • Scale in Engineering Units
  • Sunlight Readable LED Display
  • 4-20 mA Analog Output
  • Two form C 3 A Relays Option
  • RS-485 Serial Communications
  • Modbus RTU Option
  • Data Acquisition with MeterView

1 - 4 of 4 Part Numbers
PD644-6R3-14
PD644-6R3-14
  • Power - 85-265 Vac
  • Options Installed - 24 Vdc Transmitter Supply
PD644-6R5-14
PD644-6R5-14
  • Power - 85-265 Vac
  • Options Installed - 2 Relays & 24 Vdc Transmitter Supply
PD644-7R3-04
PD644-7R3-04
  • Power - 12-36 Vdc
  • Options Installed - None
PD644-7R5-04
PD644-7R5-04
  • Power - 12-36 Vdc
  • Options Installed - 2 Relays
1 - 4 of 4 Part Numbers

View_Details

Specifications

Brand

Approvals & Certifications

  • UL

Communication

  • Modbus

Deadband

  • 0 to 100 % of Full Scale

Enclosure, Body Material

  • High Impact Plastic

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90 % Non-Condensing

Input

  • 0 to 300 Vdc

Isolation

  • 4 kV Input/Output-to-Power-Line
  • 500 V Input to Output or Output to P+ Supply

Operating Temperature

  • 0° to 65° C (32° to 150° F)

Operating Voltages

  • 50/60 Hz

Power

  • 20 W

Power Supply

  • 85-265 Vac
  • 90-265 Vdc

Documentation

Data Sheets

Certifications

Instruction Manuals

Modbus Tables
