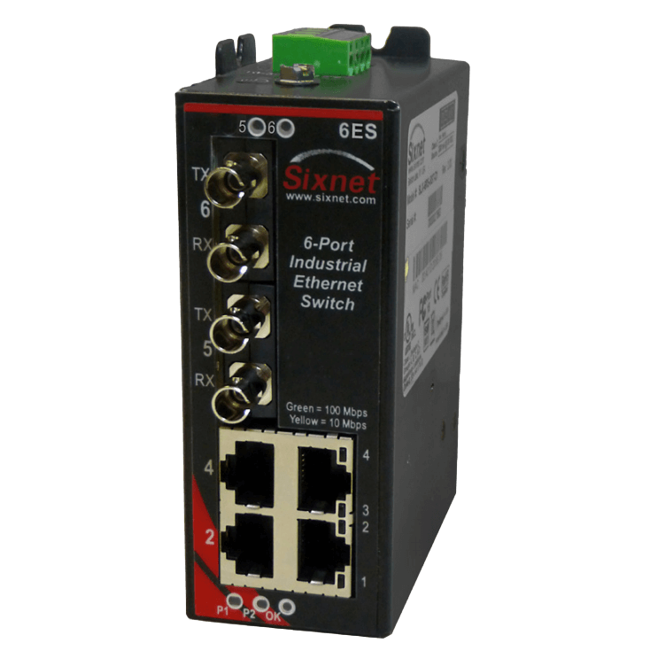

SL/SLX-6ES-4/5 Industrial Ethernet Switch
Brand: Red Lion Controls
The SL/SLX-6ES-4/5 is a 6 port industrial Ethernet switch featuring 2 fast fiber optic ports.
It provides advanced performance for real-time deterministic operation and is ruggedized to provide superior reliability.
This switch requires no user setup and immediately starts operating as soon as you power it up.
Sixnet switches are designed to make your job easier, ensuring your system will keep running for many years to come.
Features- 4 fast RJ45 and 2 noise-immune fiber ports
- Truly industrial hardened design
- Slim case for DIN rail or direct panel mounting
- High performance and value
- Plug and play saves you time and money
1 - 12 of 14 Part Numbers
ET-PS-024-02
- Product - Power Supply - AC to 24 Vdc, 2 A
SL-6ES-4SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Multimode SC, 4 km
SL-6ES-4ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Multimode ST, 4 km
SL-6ES-5SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Singlemode SC, 20 km
SL-6ES-5SCL
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Singlemode SC, 60 km
SL-6ES-5ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Singlemode ST, 20 km
SL-6ES-5STL
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports, 2 Singlemode ST, 60 km
SLX-6ES-4SC
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 4 RJ45-Ports, 2 Multimode SC, 4 km
SLX-6ES-4ST
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 4 RJ45-Ports, 2 Multimode ST, 4 km
SLX-6ES-5SC
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 4 RJ45-Ports, 2 Singlemode SC, 20 km
SLX-6ES-5SCL
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 4 RJ45-Ports, 2 Singlemode SC, 60 km
SLX-6ES-5ST
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 4 RJ45-Ports, 2 Singlemode ST, 20 km
1 - 12 of 14 Part Numbers
Specifications
Brand
Approvals & Certifications
- ABS for Marine & Offshore
- ANSI/ISA 12.12.01, CSA 213 (Class I, Div. 2), C22.2/142
- ATEX
- CE
- EMC
- FCC Part 15, ICES-003
- IEEE 802.3, 802.3 u, 802.3x
- RoHS
- UL 508
- WEEE
Approvals & Certifications
- EN 61010-1, 6-2,4, 60079-15 (Zone 2, Category 3), 61000-6-2/4
Bandwidth
- Memory Bandwidth: 3.2 Gbps
Electrical Connectors
- RJ45 Port
Electrical Protection
- Reverse Polarity Protection
Enclosure, Body Material
- Aluminum - SLX
- Lexan - SL
Environmental Protection
- IP30
- IP40
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Input
- 10-30 Vdc
- 5 W - 4/5 Model with 2 Fiber
- Spike Protection: 5,000 W (10 x for 10 μS)
- Transient Protection: 15,000 W Peak
Isolation
- Ethernet: 1,500 Vrms 1 Minute
Mounting
- DIN Rail Mounting
- Direct Panel Mounting
Operating Temperature
- -40° to 60° C (-40° to 140° F) - SL Models
- -40° to 85° C (-40° to 185° F) - SLX Models
Output
- Alarm: 0.5 A, Max.
Shock
- IEC 60068-2-27
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- IEC 60068-2-6
