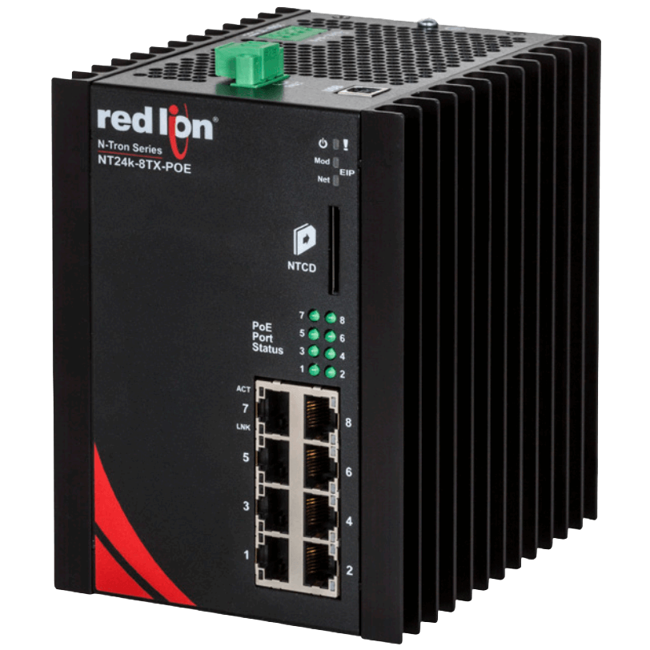

Red Lion Industrial PoE+ Switch, NT24k-8TX-POE

NT24k-8TX-POE Industrial PoE+ Switch

Brand: Red Lion Controls
Add Product to My Catalog

Red Lion’s N-Tron Series NT24k -8TX-POE compact managed Gigabit Ethernet switch features eight 10/100/1000Base-T(X) ports with PoE providing a robust solution for transmitting power and data to equipment in harsh environments.

The NT24k-8TX-POE managed switch features 8 ports (eight Gigabit IEEE 802.3af/at Power over Ethernet Plus (PoE+) ports) and is housed in a compact, hardened metal DIN-rail enclosure with redundant 22-49 Vdc power inputs.

Designed to handle the most demanding environments, the NT24k-8TX-POE provides up to 30 Watts of power per port, high shock and vibration ratings and a wide -40° to 80° C (-40° to 176° F) operating temperature range.
Features
  • 8 Copper Ports
    • Eight 10/100/1000Base-T(X) copper ports, supporting PoE+ on each port
  • Redundant 22-49 Vdc power inputs
    • Boosts power to meet PoE+ output requirements
  • IEEE 802.3af/at PoE output
    • Supports PoE+ output on all copper ports simultaneously
  • Extended environmental specifications
    • -40° to 80° C (-40° to 176° F) operating temperature range
    • > 2M hours MTBF
    • UL/cUL: Class I, Div. 2 Groups A, B, C and D
  • Plug and play operation:
    • IGMP auto-configuration
    • MDIX auto-sensing cable
    • Simple network ring configuration
    • Backup and restore via recovery card or XML
  • Fully Managed features include:
    • Jumbo frame support
    • SNMP v1, v2, v3
    • Web browser management
    • Detailed ring map and fault location charting
    • RSTP - 802.1d, 802.1w, 802.1D
    • Trunking and port mirroring
    • 802.1Q tag VLAN and port VLAN
    • IEEE 802.1x with RADIUS remote server authentication
    • 802.1p QoS, port QoS and DSCP
    • DHCP client
    • Event Log
    • SNTP (Simple Network Time Protocol)
    • Multi-Member N-Ring technology with ~30ms healing
    • N-Link redundant ring technology
    • N-View monitoring technology
    • EtherNet/IP CIP messaging

1 - 5 of 5 Part Numbers
NT24K-8TX-POE
NT24K-8TX-POE
  • Product - Eight Port 10/100/1000BaseT Managed PoE+ Industrial Ethernet Switch
NT24K-NM-PMK
NT24K-NM-PMK
  • Product - NT24k Non-Modular Panel Mount Kit
NTCD-CFG
NTCD-CFG
  • Product - NT24k Configuration Recovery Device
NTPS-24-20
NTPS-24-20
  • Product - DIN-Rail Power Supply 20 A, 24 Vdc
NTPS-48-10
NTPS-48-10
  • Product - DIN-Rail Power Supply 10 A, 48 Vdc
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Applications

  • Alternative Energy
  • Manufacturing Processes
  • Oil & Gas
  • Transportation
  • Utilities
  • Water & Wastewater

Approvals & Certifications

  • EN 55011, 61000-6-4, 61000-3-2, 61000-3-3, 55032 (Emissions), 55024, 61000-6-2 (Immunity), 50155, 50121, 61373 (Rail)

Approvals & Certifications

  • ABS for Shipboard Applications
  • ATEX
  • CAN/CSA C22.2 No. 213-M1987 Class I, Div. 2, Hazardous Locations, 14-M1987
  • CE
  • EMC 2014/30/EU
  • FCC Title 47, Part 15, Radio Frequency Devices, Subpart B ANSI C63.4-2009, ICES-003
  • GOST-R
  • IEC 61000-4-2 (ESD), 61000-4-3 (RFAM), 61000-4-4 (EFT), 61000-4-5 (SURGE), 61000-4-6 (RFCM), 61000-4-8 (PFMF), 61000-4-11 (VDI)
  • IEEE 1613 for Electric Utility Substations, 802.3, 802.3 u, 802.3ab, 802.3x, 802.3af/at, 802.1d/D/w, 802.1p, 802.1Q, 802.1x
  • LVD 2014/35/EU
  • RoHS
  • UL 508 Class I, Div. 2, Groups A, B, C, D

Circuit Protection

  • ESD Protection
  • Surge Protection

Communication

  • EtherNet/IP

Current

  • Inrush: 68 A / 0.09 millisecond at 24 Vdc

Electrical Connectors

  • 10/100/1000Base-T: Eight (8) RJ45 Ports
  • Configuration Port: One (1) USB Typical B

Electrical Protection

  • Reverse Polarity

Environmental Protection

  • NEMA TS1 for Traffic Control
  • NEMA TS2 for Traffic Control

Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Indication

  • LED

Input

  • 10.94 A at 24 Vdc
  • 22-49 Vdc

Mounting

  • DIN Rail Mounting
  • Panel Mount

Operating Temperature

  • -40° to 80° C (-40° to 175° F)

Power

  • 57 Vdc / 30 W Output (25.5 W at PD)

Shock

  • 200 G at 10 milliseconds

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • 50 G at 5 to 200 Hz, Trial (Bulkhead Mounted)

Wiring

  • Wiring Clearance Front: 2” (5.08 cm)
  • Wiring Clearance Top: 4” (10.16 cm)

Documentation

Data Sheets
