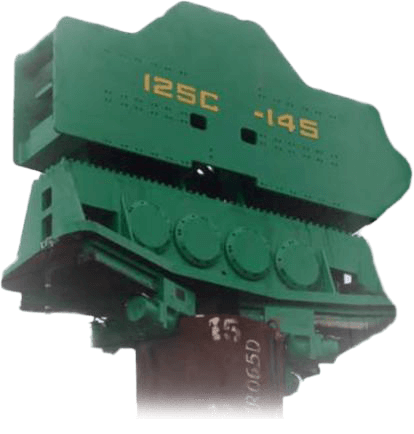

ICE 125 Vibratory Hammer
Brand: PACO Ventures, LLCICE 125C has the highest driving force (415 tons, 3,700 kN) of any single ICE Vibrator.
Design combines high eccentric moment (12,500 in-lbs, 142 kg-m) & suspended weight with quad caisson clamps less than 55,000 (25,000 kg).
Features- Patented Dual-pull™ suppressor provides maximum vibration isolation during driving and light extraction combined with high pull capability for tough extraction jobs.
- Integral quad caisson clamps for optimizing force transmission.
- Maximum efficiency and reliability are provided by our open-loop hydraulic system and application proven piston pumps and motors.
- Remote-control pendant for vibrator and clamp with emergency stop. Engine speed control for fuel efficiency.
- Adaptable for underwater operation.
- Environmentally friendly Chevron Clarity® non-toxic, biodegradable hydraulic oil.
- Designed and manufactured in the USA by ICE®, world leader in cost-effective foundation equipment since 1974
Specifications
Brand
Eccentric Moment
- 12,500 in-lb (142 kgm)
Maximum Frequency
- 1,500 VPM
Driving Force
- 415 tons (3,700 kN)
Amplitude
- 1 inch (19 mm)
Maximum Line Pull for Extracting
- 200 tons (1,800 kN)
Length
- 164 in (4,160 mm)
Width
- 61 in (1,535 mm)
