Water Level Sensor

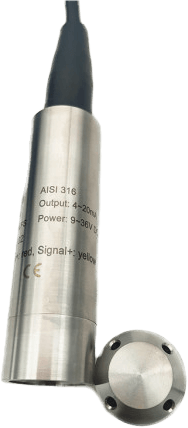

Brand: Xi'an UTOP Measurement Instrument Co, LtdWater Level Sensor of ULB16 model is made from stainless steel with rigid and robust construction.
The protection cap with a small hole not only protect the diaphragm, but also let the liquids contact the diaphragm freely.
The good sealing technology as well as great assembly techniques guarantee ULB16 water level sensor's outstanding quality & performance.
This water level sensor has a waterproof cable with vent hose which is designed for submersible applications.
Features- Rigid and robust construction, IP68 protection
- Wide application scope, long service life
- Reversed polarity protection and current limiting protection
- Against thunder stroke, against radio-frequency
- Intrinsic safety, or flame-proof safety optional
- PVC, PUR or PTFE cable for options
Specifications
Measuring Ranges
- 0 ~ 1 mH₂O...200 mH₂O
Overload Pressure
- 200 % Full Scale
Output Signal
- 4~20 mA, 0~5 V, 0~10 V, 1~5 V
Accuracy
- 0.25 % Full Scale, 0.5 % Full Scale (Standard)
Load Resistance
- RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Long-Term Stability
- < 0.1 % Full Scale/year
Supply Voltage
- 12 ~ 36 Vdc
Compensated Temperature Range
- 0° ~ 70° C
Storage Temperature Range
- -40° to 100° C
Temperature Coefficient of Zero
- 0.25 % Full Scale/10° C
Temperature Coefficient of Span
- 0.2 % Full Scale/10° C
Insulation Resistance
- 100 MΩ @ 50 Vdc
Electrical Connection
- Ø 7.6 mm Shielded Cable with Vent Hose
Material of Wetted Part and Housing
- 304 Stainless Steel
Material of Pressure Diaphragm
- 316L
Sealing
- n-Butyronitrile or Fluoro-Rubber Sealing Ring
- This Water Level Sensor is designed with IP68 Protection, it is Widely Applied in Petroleum, Chemical Industry, Medicine, Metallurgy, Hydrology Exploration etc
