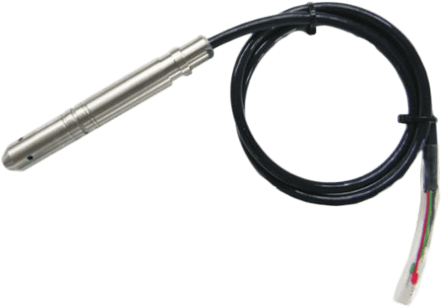

ULB6 Stainless Steel Level Transmitter is made from stainless steel with rigid and robust construction. The protection cap with a small hole not only protect the diaphragm, but also let the liquids contact the diaphragm freely.

The exquisite sealing technology as well as good assembly techniques guarantee ULB6 level transmitter's outstanding quality & performance. The product has a waterproof cable with vent hose which is designed for submersible applications.
Features
  • All welded construction, 19 mm diameter, IP68 protection
  • Reversed polarity protection and current limiting protection
  • Against thunder stroke, against radio-frequency interference
  • PUR, NBR, PE or PTFE cable for options
  • Wide application scope, long service life
  • Diameter of sensor: 19 mm

Specifications

Measuring Ranges

  • 0 ~ 1 mH₂O...200 mH₂O

Overload Pressure

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.1 % FS, 0.25 % FS, 0.5 % FS

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Storage Temperature Range

  • -40° to 100° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Electrical Connection

  • Ø 7.2 mm Shielded Cable with Vent Hose

Material of Wetted Part and Housing

  • 1Cr18Ni9Ti

Material of Pressure Membrane

  • 316L or Tantalum

Sealing

  • Nitrile-Butadiene Rubber (Standard) or Fluoro-Rubber Sealing Ring

  • The Stainless Steel Level Transmitter is Designed with IP68 Protection, it is widely applied in Petroleum, Chemical Industry, Medicine, Metallurgy, Hydrology Exploration etc.
