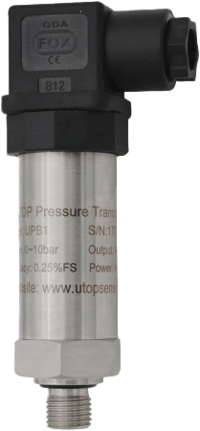

High Accuracy Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, Ltd
UPB1 high accuracy pressure transmitter uses separated stainless steel diaphragm pressure sensor as sensing element based on piezoresistive silicon technology.
By adopting high performance IC. Its amplifier circuit is built in stainless steel housing, and transform sensor from mV signal into standard output signals.
UPB1 high accuracy pressure transmitter is characterized with integrated construction, high accuracy, long term stability.
Features- Against thunder stroke, against radio-frequency interference
- Full stainless steel construction
- Reversed-polarity, transient current & voltage protection
- Suitable for the measurement of low pressure and vacuum pressure
- Anti-corrosion, anti-attrition, anti-impact
Specifications
Pressure Ranges
- -1...0 ~ 0.1...1000 bar
Pressure Type
- Gauge
- Absolute
- Sealed Gauge
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V, 0.5 ~ 4.5 V
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
Supply Voltage
- 12 ~ 36 Vdc
Compensated Temperature Range
- -10° ~ 70° C
Operating Temperature Range
- -30° to 100° C
Storage Temperature Range
- -40° to 120° C
Temperature Coefficient of Zero
- 0.2 % Full Scale/10° C
Temperature Coefficient of Span
- 0.2 % Full Scale/10° C
Process Connection
- G1/4” or others
Electrical Connection
- DIN Connector or others
Material of Wetted Part and Housing
- 1Cr18Ni9Ti
Material of Pressure Membrane
- 316L
- UPB1 High Accuracy Pressure Transmitter is widely used for the Applications in Petroleum, Chemical Industry, Metallurgy, Power Station etc.
