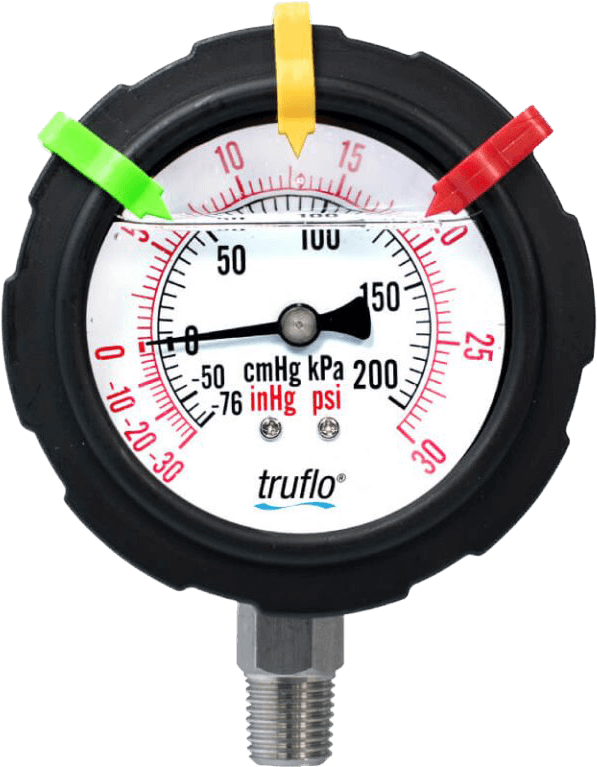

OBS-V Vacuum Pressure Gauge
Brand: Truflo®The OBS-V Series Vacuum Plastic Pressure Gauge is the industry’s most accurate pressure gauge on the market designed for corrosive environments.
With a Thermoplastic Polypropylene enclosure, OBS-V Series chemical pressure gauges were engineered to last in the most corrosive environments.
A 1/4" NPT 316SS connection comes standard on all OBS-V Plastic Pressure Gauges.
This connection allows for them to be a perfect mate with our GI Series Pressure Gauge Guards when dealing with extremely corrosive chemicals.
Pressure Gauge guards are utilized to protect the pressure gauge from any corrosive media in the process system via an isolator.
OBS-V Plastic Pressure Gauges come factory pre-filled, which is one of the main reasons we were able to achieve that industry leading accuracy of 0.75%.
Each OBS-V Pressure Gauge is also equipped with Color Range Tabs.
These 3 movable red, yellow and green range tabs are designed to act as a visual pressure alert for bag or filter change-outs.
Features- Suitable for Corrosive Environments
- Large 2½”
- -30 to +30 psi Range
- 3 Range Tabs | Red | Yellow | Green
- High Accuracy | ±0.75 %
- Factory Pre-Filled
- High Impact Case Housing
Specifications
Brand
Mounting
- Direct Mount
- Bottom Connection
Process Connection
- 1/4” MNPT
Measuring Principle
- Bourdon Tube
- 316 Stainless Steel
Pressure Ranges
- -30 to +30 psi
Lens
- High Impact Polycarbonate
Filling
- Glycerin
- Silicon
- Halocarbon
Accuracy
- ± 0.75 %
Operating Temperature
- 190° F
Dial Diameter
- 2-1/2”
- Chemicals | Acids | Bases
- Process Pressure
- Strainer Clean-Out Notification
- Filter Bag Replacement Notification
- Pressure Leak Detection
