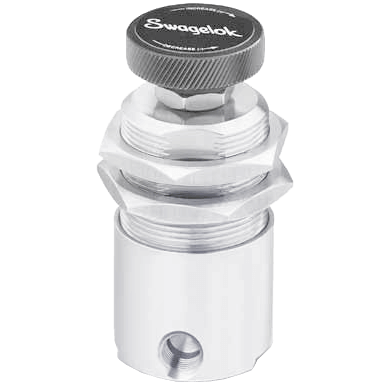

KCB Series Compact Regulator
Brand: Swagelok CompanyThe KCB series provides high sensitivity back-pressure control of sampling conditioning systems.
It is ideally suited for use in portable or laboratory analytical systems as well as being embedded in the instrument bays of OEM equipment or sampling cabinets.
Features- Low internal volume
- Fully contained piston
- Excellent flow characteristics with a Cv of 0.20
- ANSI/ISA 76.00.02-compliant modular platform component (MPC) configuration available
- Maximum Inlet Pressure: psig: 0 to 375 (bar: 0 to 25.8 kPa: 0 to 2,583)
- Pressure Control Range: psig: 0 to 375 (bar: 0 to 25.8 kPa: 0 to 2,583)
- Maximum Operating Temperature:
- 80°C (176°F) with PCTFE
- 200°C (392°F) with PEEK
- Process Connection: 1/8" Female NPT, MPC
- Actuator: Knob, Antitamper nut, Thumbwheel
- Materials of Construction:
- Enclosure: 316 Stainless Steel
- Piston: 316 Stainless Steel
- Seat: Fluorocarbon FKM, Kalrez
- Seal: PCTFE, PEEK
Specifications
Brand
Actuator Type
- 316 Stainless Steel Anti-Tamper Nut
- Knob
- Thumbwheel
Enclosure, Body Material
- 316 Stainless Steel
Flow Rate
- 0.10 Cv
- 0.20 Cv
Media
- Gas
Mounting
- None
- Panel
NPT Connection
- 1/8” NPT Female
Piston Material
- 316 Stainless Steel
Piston Seal Material
- Fluorocarbon (FKM)
- Kalrez
Pressure Range
- bar: 0 to 25.8
- kPa: 0 to 2,585
- psig: 0 to 375
Process Connection - Other
- MPC Platform
Process Temperature
- 80° to 200° C (176° to 392° F)
Seat / Seal Material
- Fluorocarbon (FKM)
- PCTFE
- PEEK
- PTFE
Special Cleaning & Packaging
- ASTM G93 Level E-Cleaned
- SC-11
Stem Material
- 316 Stainless Steel
Supply Pressure - Maximum
- bar: 0 to 25.8
- kPa: 0 to 2,585
- psig: 0 to 375
