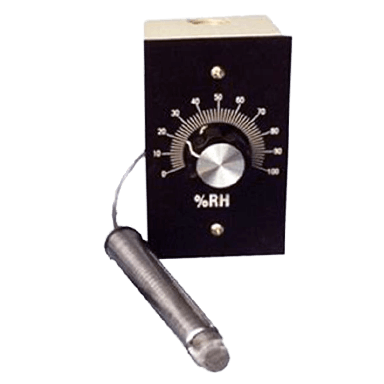

RHS-1 RH Set Point Controller & Probe
Brand: TegamThe Model RHS-1 measures Relative Humidity (RH) and is also a setpoint RH controller.
The RHS-1 has two outputs: a 5 Amp 250 Vac SPDT controller relay and a 10 mV / % RH recorder output.
The setpoint and dead band controls are independent of each other, which makes setting these parameters fast and simple.
The included probe may be mounted up to 1,000 feet from the controller and includes a wall mounting bracket.
Features- Quality Relative Humidity Set Point Controller
- Stainless Steel Probe (4.7" Long x 0.75" Diameter)
- State-of-the-Art Thin Film Polymer Sensor
- Recorder Output of 0 to1 V (or 0 to 5 V) for 0 to 100% RH Input
- Independent Bandwidth Control
- 5 Amps, 250 Vac SPDT Relay for Setpoint Output
- Standard Metal "T" Box Enclosure
Specifications
Brand
Accuracy
- ± 3 % Relative Humidity from 3 % to 95 % Relative Humidity
Approvals & Certifications
- CE
Electrical Connectors
- Screw Terminal
Electrical Rating
- 5 A at 250 Vac
- 5 A at 30 Vdc
Humidity
- 3 to 95 % Relative Humidity
Input Power
- 8-30 Vdc at 125 mA - Max.
Mounting
- Wall Mounted
Operating Temperature
- -20° to 85° C (-4° to 185° F)
Output
- 0-1 V
- 0-5 V
- 10 mV/ % Relative Humidity
- 30 Vdc
- 5 A at 250 Vac
Sensor, Probe Material
- Stainless Steel
Switch Type
- SPDT Relay (Form C)
