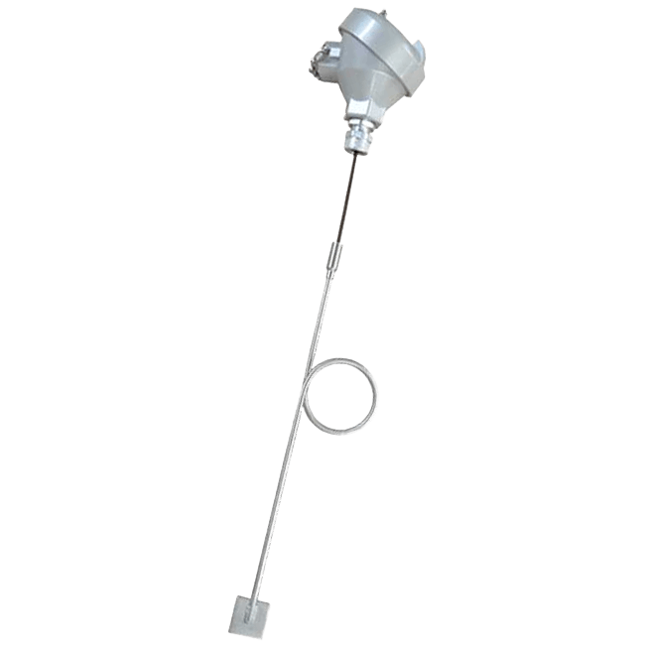

Type 1510 Tubeskin Thermocouple
Brand: SOR IncThe SOR Tubeskin Thermocouples are meant for measuring surface temperatures of heat exchangers, boilers, and other vessels.
Features- Various pipe mounting options: parallel, wrap around, weld bevel (parallel or wrap around), and flat
- Optional heat shield that isolates heat from escaping at the junction
- Optional Expansion Loop option that allows the tube to expand as it experiences thermal growth
Specifications
Brand
Diameter
- Outer Diameter (OD): 1/8 to 3/8” (3.2 to 9.5 mm)
Electrical Connectors
- Compensated Terminals
Enclosure, Body Material
- Head Typical (Sanitary): Polypropylene
- Head Typical: Aluminum (Cast, Flip Top)
- Head Typical: Iron (Cast, Flip Top)
- Head: Stainless Steel
Environmental Protection
- Explosion-proof
- IP66
- IP68
- NEMA 4X
Junction
- Dual Grounded
- Dual Ungrounded
- Grounded
- Ungrounded
Lead Insulation
- Fiberglass
- PVC
- Teflon
Materials of Construction
- Adjacent Compression Fitting, Overbraid & Armor: Stainless Steel
- Armor with PVC Jacket
- Ferrule Material: Teflon
- Sheath Material: 304 Stainless Steel
- Sheath Material: 310 Stainless Steel
- Sheath Material: 316 Stainless Steel
- Sheath Material: Alloy 600
Mounting
- Clamp
- Flat
- Parallel Pin
- Pipe
- Weld Bevel
- Wrap Around
NPT Connection
- 1/2” NPT
- 1/4” NPT
- 1/8” NPT
Process Fitting Details
- Adjacent Compression Fitting
- Weather Tight Fitting, 1/2” NPT
Relief
- Bell Spring Transition Relief
Sensor, Probe Type
- E Thermocouple - Chromel-Constantan
- J Thermocouple (Iron Constantan)
- K Thermocouple (Chromel Alumel)
- N Thermocouple (Nicrosil Nisil)
- T Thermocouple (Copper Constantan)
Temperature Range
- 149° C (300° F) - Max.
