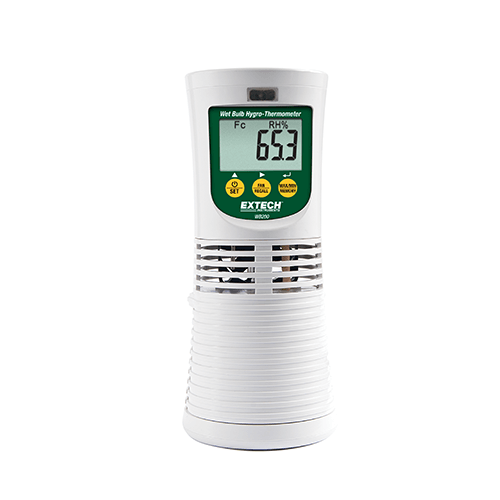

WB200 Wet Bulb Hygro-Thermometer Datalogger
Brand: ExtechIdeal for monitoring humidity and temperature levels in offices, factories, warehouses, storage rooms, freezers, shipping vans, and during flood restoration, the WB200 combines traditional dry/wet bulb operation (refillable water tank) with electronic circuitry to provide accurate readings and trouble-free operation, especially in dusty environments.
A built-in fan provides the fast response time.
Audible and visual alerts for temperature and humidity levels higher or lower than the user programmed High/Low set points.
Datalogger featuring user programmable sampling rate (15 to 60 minutes) stores 100 records that can easily be recalled on the display.
Measures Wet Bulb, Dew Point, Temperature (41°F to 122°F /5°C to 50°C) and Relative Humidity (0.0 to 99.9%RH).
Comes with four AAA batteries, 100-240-Volt Universal AC adapter, and user manual.
Features- Measures Wet Bulb, Dew Point, Temperature (41°F to 122°F /5°C to 50°C) and Relative Humidity (0.0 to 99.9%RH).
- Resolution: 0.1°F/°C and 0.1%RH.
- Basic accuracy: ±1°F/±0.6°C; ±3%RH.
- Audible and visual alarm alerts when temperature and humidity level is higher or lower than the user programmed High/Low set points.
- Two thermistors provide fast and accurate readings.
- Dual color LED indicator for datalogging (Green) and alarm (Red) modes.
- Datalogger stores 100 records that can easily be recalled on meter display.
- User programmable datalogging sampling rate from 15 to 60 minutes in 5 minute increments.
- Water and Dust resistant construction, Low battery indicator.
- Complete with four AAA batteries and 100-240V Universal AC adaptor.
Specifications
Brand
Accuracy
- RH: ± 3 % (10 to 90 % Relative Humidity @ 25° C, ± 5 % Outside of This Range)
Audible Alert
- Sounds Intermittently when in an Alarm Condition
Data Logging Sample Rate
- Programmable from 15 minutes to 60 minutes in 5 Minute Increments
Datalogger Memory
- Up to 100 Reading Sets (Each Set Includes One Measurement from Each of the Four Measurement Modes). Recall Readings Directly on the Meter's LCD Display. the Internal Memory is non-volatile.
LCD Dimensions
- 24 (H) x 40 (W) mm / (0.94 x 1.58”)
LCD Display
- 7-Segment Digit Typical for Readings & Messages
LED Status Indicator
- Flashes Red in an Alarm Condition
Low Battery Indication
- Empty Battery Symbol Appears on the LCD
Measurement Ranges
- Temperature (Air, Wet Bulb, Dew Point): 5 to 50° C (41° to 122° F)
Meter Dimensions
- 70.8 (Top Cover) x 77.6 (Bottom Cover) x 177 (H) mm / (2.8 x 3.1 x 7.0”)
Over Range Indication
- E3 Appears on the LCD
Power Supply
- Four (4) 1.5 V 'AAA' Batteries or 5 V Universal Power Adaptor (Included)
Resolution
- 0.1° C / F (Air, Dew Point, & Wet Bulb Temperature)
Response Time
- 120 second Update Rate
Temperature Units
- Switchable Temperature Units (°C/°F)
Under Range Indication
- E2 Appears on the LCD
Water Tank Capacity
- 120 ml (4 oz.)
Weight
- 250 g (8.0 oz.) with Batteries Installed
