(CEMS) II e Continuous Emissions Monitoring System

The Gasmet CEMS II e FTIR measuring system is designed for continuous emissions monitoring measurements (CEM). Typical application is H2O, CO2, CO, N2O, NO, NO2, SO2, HCl, HF, NH3, CH4, C2H6, C3H8, C2H4 and CH2O monitoring from waste incinerator or large combustion plants. Measured components and calibration ranges can be changed according to application.

The Gasmet CEMS II e is an ideal tool to use for measuring trace concentrations of pollutants in wet, corrosive gas streams. All parts of the Gasmet CEMS II e are be heated up to 180° C. It can be used for undiluted gases and the sample gases do not need drying beforehand.

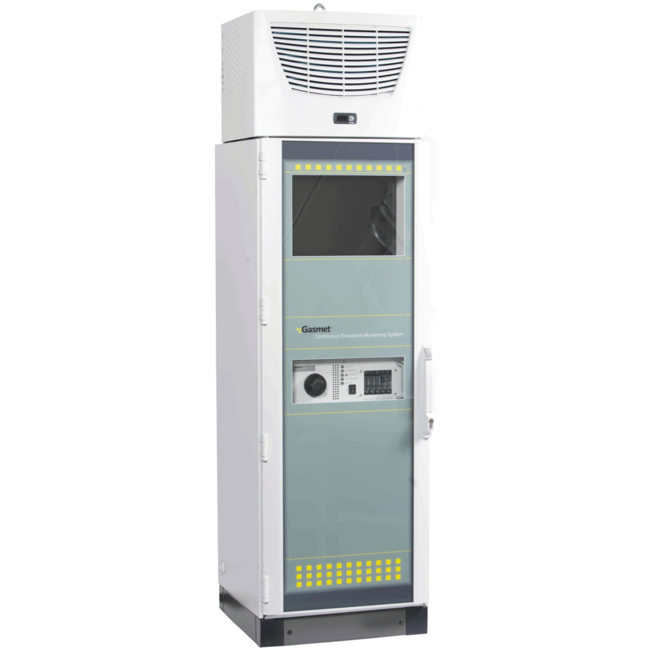

The Gasmet CEMS II e consists of Gasmet FTIR gas analyzer, Gasmet industrial computer, and Gasmet sampling system. As an option the system can be equipped with ZrO2 oxygen analyzer and/or with total hydrocarbon analyzer (FID). All parts of the system are 19” rack mounted and are installed on the pull-out shelves. The Gasmet CEMS II e includes all power connections and temperature controllers for heated lines and heated sample probe. The operation of the system is fully automatic and controlled by the Calcmet software. Additionally all functions of CEMS II e can be controlled manually.
