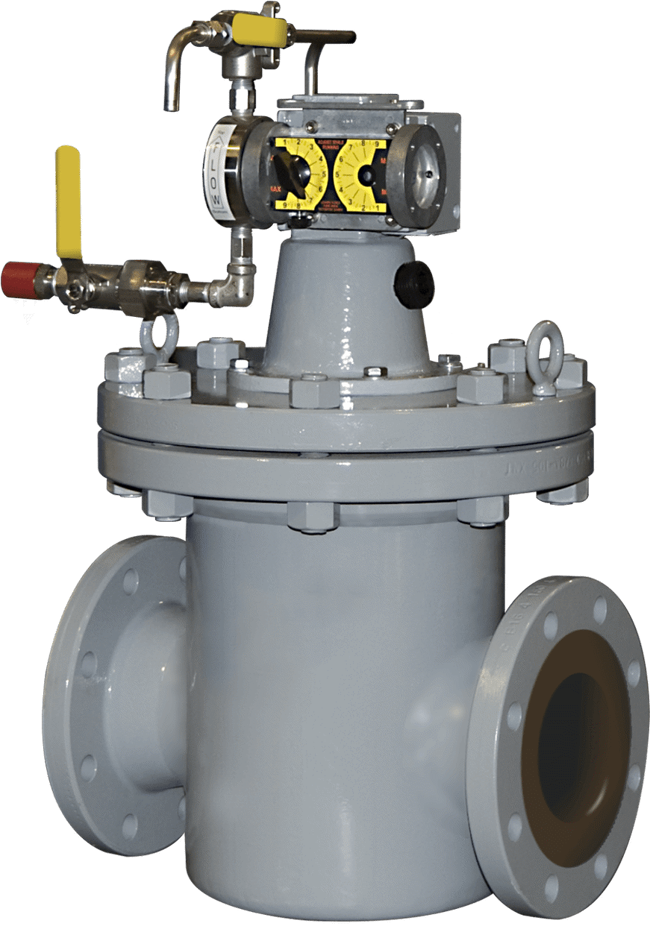

Fluid Power Model 4T Stationary Injection Systems
Brand: Hammonds CompaniesThe 4T Series system offers single or multiple additive injection at flow rates typically found in fuel delivery terminals and transport trailer fill stands.
The unique turbine-powered fluid motor responds precisely to changes in product volume even at lower product flow rates.
Like all Hammonds injection systems, the 4T dispenses precise quantities of additive at a continuous rate, eliminating the “slugging” effect typically found in meter-pulsed injectors.
Features- Unique Fluid-powered Turbine injection
- Product meters or pulsars not required
- Even and accurate blend
Specifications
Brand
Number of Additive
- 1 standard, up to 4
Injection Ratios
- 0 to 4000 ppm depending upon application
- 200 to 750 GPM continuous operation
- 100 to 400 GPM with proper diverter intermittent operation
Temperature Range
- -40 °F to 250 °F
- -40 °C to 121 °C
Maximum Line Pressure
- 150 psi
Viscocities
- up to 10,000 ssu
Media
- Fuels
- Oils
- Additives and liquid gases
Construction
- Hard annodized aluminum or carbon steel
- Metering pump: All wetted parts 300 series stainless steel
- Elastomers: Aflas, Viton and Teflon
- Mechanical Seal: Carbon on ceramic
