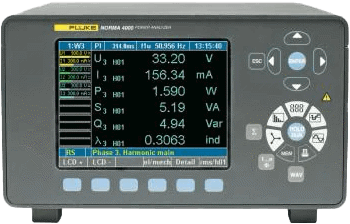

Fluke Norma 4000 Power Analyzers
Brand: Fluke CorporationThe compact Fluke Norma Power Analyzer 4000 provides the latest measurement technology to assist engineers with the development and testing of motors, inverters, lighting, power supplies, transformers and automotive components.
Based on a patented, high-bandwidth architecture, the instrument delivers high-precision measurements of single or three-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values.
The Fluke Norma 4000 Three-Phase Power Analyzer is a rugged, high-precision analyzer providing unmatched price performance for easy and reliable use in the field, or as a bench unit in laboratories and on test benches.
Features- Compact power analyzer to assist engineers with developing and testing motors, inverters, lighting, power supplies, transformers, and automotive components
- Features a simple user interface to ensure easy, intuitive operation
- Measures voltage, current, and power harmonics up to the 40th harmonic for complete analysis
- Offers a variety of standard configurations so users can choose the exact functionality required for their unique application
- Performs simultaneous parallel acquisition of all phases to allow accurate viewing of dynamic events on all phases at exactly the same point in time
- Compact design makes it easy to carry and saves working space
- Provides galvanically isolated inputs to avoid short circuits in all applications
- Includes FFT analysis, vector diagram, and digital oscilloscope (DSO) mode in the base unit for complete analysis capability
- Offers user-selectable average time—from 15 ms up to 3600 s—for dynamic measurements
- Includes 4 MB on-board memory (expandable to 128 MB) for storing measured values
- Allows fast and easy connection to a PC; RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0
- Provides PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications
- Features 341 kHz or 1 MHz sample rates for detailed signal analysis
- Provides bandwidth from DC to 3 MHz or DC to 10 MHz for reliable measurement precision
- Includes Fluke NormaView PC software for data download, analysis, and reporting
1 - 12 of 12 Part Numbers
3108534
3108541
3108552
3108565
3108576
3108583
3108601
3108612
3110957
3110969
3110978
3312894
1 - 12 of 12 Part Numbers
Specifications
Brand
Phases
- 1 to 3
Bandwidth
- DC to 3 MHz or DC to 10 MHz depending on input module
Basic Accuracy
- 0.2 %, 0.1 % or 0.03 % depending on input modules
Sampling Rate
- 0.33 MHz or 1 MHz depending on input modules
Voltage Input Range
- 0.3 V to 1000 V
Current Input Range
- 0.03 mA to 20 A depending on input module
Memory
- Configurations: 4MB
- Settings: 0.5MB
RS-232/USB Interface
- Standard
Working Temperature Range
- 5° C to 35° C
- 41° F to 95° F
Housing Material
- Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
Measuring Inputs
- Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
Connections
- Rear panel of the 3-Phase Analyzer
Range
- DC and 0.2 Hz to sample rate
Accuracy
- ± 0.01 % of measured value
Electrical Safety
- EN 61010-1 / 2nd Edition 1000 V CAT II (600 V CAT III)
- Degree of pollution 2, safety Class I
- EN 61558 for transformer
- EN 61010-2-031/032 for accessories
- Electric Motors And Inverter Drive Systems
- Inverter Drive System
- Lighting Systems
- Transformers
- Automotive
