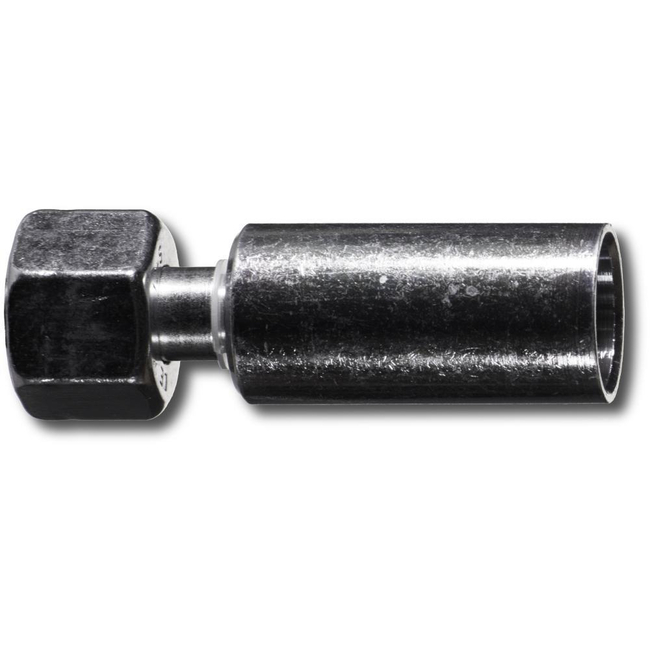

Crimped Thermoplastic Hydraulic Hose Fittings, NX Series

Brand: Parker Hannifin

Parker NX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose types 2246F, 2380F, 2244N and 2370N.
Features
  • The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
  • Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
  • Multiple sizes and connections are available for the right connection for your application

Specifications

Hose I.D. (DN)

  • 6 - 32

Hose I.D. (inch)

  • 1/4” - 1-1/4”

Hose I.D. (Size)

  • -4 - -20

Length (inch)

  • 1,9 - 7,1

Material

  • Galvanised Steel, Carbon Steel, Zinc-Plated

Maximum Working Pressure (Mpa)

  • 15 - 63

Shape

  • Straight, 45° Elbow, 90° Elbow

Style

  • Multiple Styles Available

Thread Type

  • Female NPT, UNF, NPSM, Metric, BSP

Tube O.D. (inch)

  • N/A

Tube O.D. (mm)

  • 8 - 38

  • High pressure paint spray applications
  • Mobile hydraulics
  • Industrial hydraulics
  • Industrial gases
  • Media transfer
  • Applications with additional heating elements
  • Hotmelt applications in the automotive industry
  • Glue applications in the automotive industry
