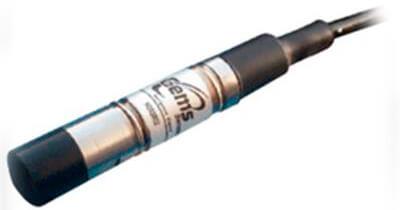

2400 Slimline Borehole Transducer/Transmitter
Brand: Gems Sensors, IncGems Sensors and Controls 2400 series immersible has been specifically designed to meet the rigors of long term immersion.
A custom designed hermetic header guarantees that water cannot enter the pressure transducer even if the cable sheath is damaged during use.
The large bore vent tube is connected directly to the back of the sensor which provides rapid venting, even on the longest cable run.
The sensor itself is impervious to the effects of water guaranteeing long service life even in areas of high humidity, which can cause condensation.
The all welded electronics enclosure is completely segregated from all other areas with the electronics themselves designed to provide fast switch on and settling to ensure maximum battery life and ease of calibration.
Features- Triple Sealed to Ensure Immersible Integrity
- <10 ms Switch on/Settling Period
- 19 mm Diameter
Specifications
Brand
Cable Length
- 1 to 999 m
Pressure Range
- 6 to 284 psi (4 to 200 mWG)
Output
- 100 mV Not Rangeable
- 4-20 mA
- 0-10 Vdc
Environmental Protection
- IP68
Certifications & Approvals
- CE
Wetted Material
- 316 Stainless Steel
- Polyurethane
- Acetal
Operating Temperature
- -40° to 180° F (-40° to 80° C)
Compensated Temperature
- 15° to 120° F (-10° to 50° C)
Accuracy
- 0.25 % Full Scale Typical
