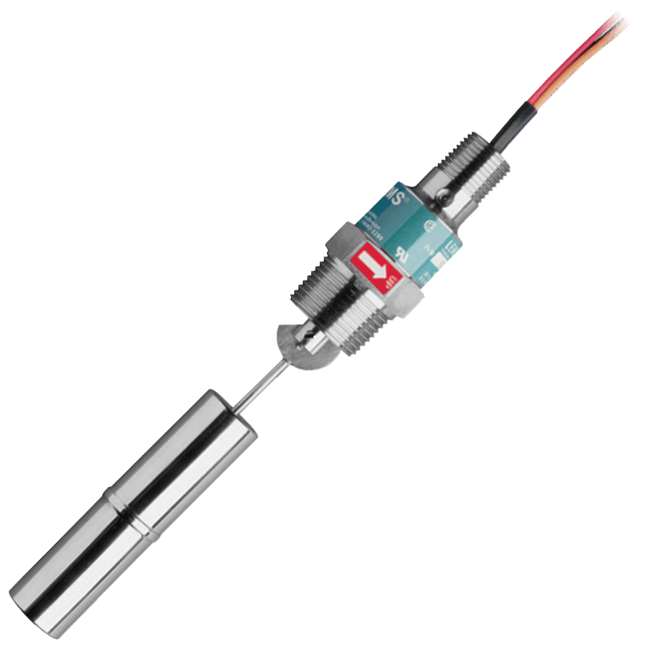

LS-52100 Series Single-Point Level Switch

Brand: Gems Sensors, Inc

These LS-52100 Series Level Switch units solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks.

Operation is positive and dependable. The float pivots with changing liquid level, displacing a shuttle which magnetically actuates a hermetically sealed switch within the unit.

Installation is through the tank side at the detection point. Rugged, all-stainless steel unit offers broad chemical compatibility at temperatures to 300° F (149° C).

1 - 4 of 4 Part Numbers
116971
116971
  • Version - Standard Version
  • Stem & Mounting / Float Material - 316 Stainless Steel / 304 Stainless Steel
  • Switch - SPST Normally Open, 100 VA
116972
116972
  • Version - Standard Version
  • Stem & Mounting / Float Material - 316 Stainless Steel / 304 Stainless Steel
  • Switch - SPST Normally Closed, 100 VA
121753
121753
  • Version - Explosion-Proof (FM, CSA)
  • Stem & Mounting / Float Material - 316 Stainless Steel / 304 Stainless Steel
  • Switch - SPDT, 20 VA
52100
52100
  • Version - Standard Version
  • Stem & Mounting / Float Material - 316 Stainless Steel / 304 Stainless Steel
  • Switch - SPDT, 20 VA
1 - 4 of 4 Part Numbers

Specifications

Applications

  • Point Level Sensing in Tanks

Approvals & Certifications

  • CE
  • FM
  • UL (C,US): File No. E45168

Electrical - Free Leads

  • 18 AWG, 24” (61 cm) Long, Polymeric Lead Wires

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 100 VA
  • 20 VA

Enclosure, Body Material

  • Float Material: 304 Stainless Steel

Fluid Specific Gravity

  • 0.85

Materials of Construction

  • Mounting Material: 316 Stainless Steel

Maximum System Pressure

  • psig: 500 (kPa: 3,447, bar: 34.47) at 21° C (70° F)

Media

  • Broad Chemical Compatibility

Mounting Position

  • Horizontal, ± 15°

NPT Connection

  • 1” NPT Male

Operating Temperature - Sensor

  • -40° to 149° C (-40° to 300° F)

Sensor / Probe Style

  • Float

Stem Material

  • 316 Stainless Steel

Switch Type

  • SPDT
  • SPST

Wetted Materials

  • 430 Stainless Steel
  • Ceramic
  • Teflon

  • Point Level Sensing in Tanks
