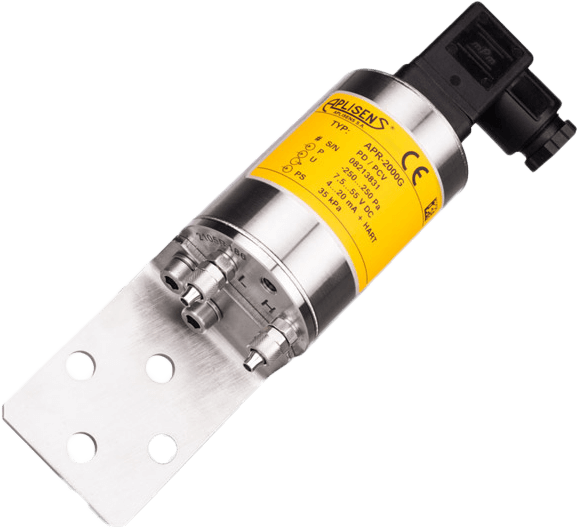

APRE-2000G Smart Differential Pressure Transmitter For Low Ranges
Brand: Aplisens S.A.
Features
- 4...20 mA output signal + HART protocol
- Display with backlight
- Programmable range, zero shift, damping ratio and characteristic with local panel keys
- Selectable linear or radical conversion characteristic
- Accuracy from 0.1%
- Intrinsic safety certificate (ATEX, IECEx)
- Safety version SIL2/SIL3
Specifications
Brand
Accuracy
- ≤ ± 0.1 %
- ≤ ± 0.25 %
- ≤ ± 0.075 %
Nominal Measuring Range
- -100 to 100 mbar
Minimum Set Range
- 20 to 2,000 Pa
- 0.2 to 20 mbar
Output Signal
- 4-20 mA + HART
Power Supply
- APRE-2000G/PD and PZ: 7.5-55 Vdc (Exia 7.5-30 Vdc)
- APRE-2000G/N: 10-55 Vdc
Thermal Compensation Temperature
- -10° to 70° C
Operating Temperature
- -30° to 85° C
Certifications & Approvals
- SIL 3/SIL 3
- ATEX
- IECEx
- cFMus
Environmental Protection
- IP67
Case Material
- APRE-2000G/PD and PZ: 304 Stainless Steel
- APRE-2000G/N: Plastic Box
Adapter Material
- C Type: 304 Stainless Steel
- PCV Type (On6 Elastic Pipe): Brass
Thermal Error
- < ± 0.1 % FSO / 10° C
- Maximum ± 0.4 % (FSO) in the Whole Compensation Range
- Measurement of Blast Pressure, Chimney Draughts or Pressure / Underpressure in Furnace Chambers
