RM Series - 5,000 - 15,000 Mid Power Floodlight​

Brand: Nemalux Industrial
Add Product to My Catalog

nemalux-rm-series-floodlight-g-600.png nemalux-rm-series-floodlight-a-600.png nemalux-rm-series-floodlight-c-600.png nemalux-rm-series-floodlight-f-600.png nemalux-rm-series-floodlight-d-600.png nemalux-rm-series-floodlight-e-600.png

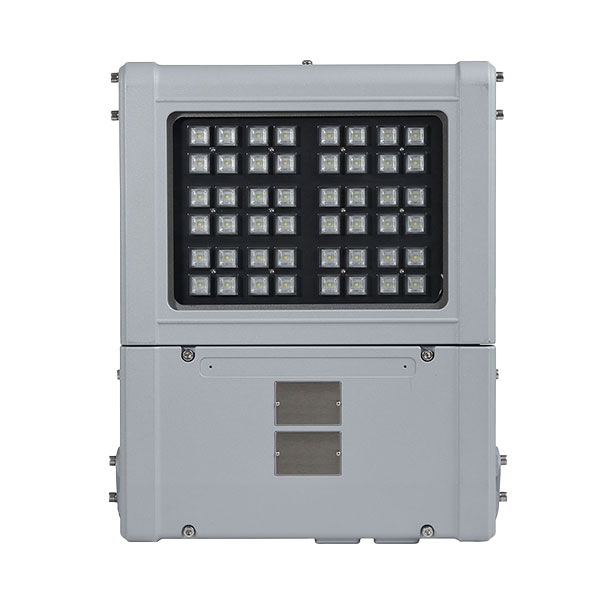

Nemalux's RM is a floodlight designed for harsh & hazardous locations use.

The RM Series LED Floodlight illuminates' hazardous location rated spaces.

The mid-power flood uses field-proven, LED technology to ensure a projected lifetime of 10 years+.

This fixture is available with outputs ranging from 5,000 to 15,000 lumens.

Effective Illumination for Industrial Applications
  • Robust & Durable
    • Robust and durable construction from marine grade aluminum. With a wide ambient temperature range for challenging conditions.
  • Built Tough
    • Constructed using tough, marine-grade aluminum and IP66 & IP67 ratings. The RM is designed to withstand challenging conditions.
  • Power & Performance
    • Output of up to 15,000 lumens, designed to directly replace traditional discharge light sources up to 250W.
Engineered for Extreme Environments
  • Multiple Beam Angles
    • Available with multiple beam patterns to effectively light up industrial areas. The use of secondary optics means no loss of output on wider angles.
  • Secondary Optics
    • Secondary optics are utilized to deliver a range of different beam patterns. This ensures light is targeted efficiently.
Simplified Installation & Operation
  • Easy to Maintain
    • An innovative modular design allows quick and easy on-site access and servicing of key components.
    • With the ability to mount the PSU remotely, making installation and maintenance easy.
Features
  • Marine grade aluminum, epoxy powder coat, toughened glass, stainless steel external fasteners and brackets
  • DALI 2.0 dimmable as standard for precise and flexible control of lighting assets
  • Output of up to 15,000 lumens, designed to replace traditional discharge light
  • Mounting options include a yoke mount and a high bay/ceiling mount
  • Approved for use in general, marine, & hazardous locations
  • RM Certifications and Safety Ratings
    • Certified for general, marine, and hazardous location use under:
      • PROTECTION/CERTIFICATION – ZONE 1/21 VARIANTS
        • CML21ATEX3317 or IEC Ex CML21.0037 or CML21UKEX3319
        • II 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T90°C Db
        • Ta -40°C to +60°C
      • PROTECTION/CERTIFICATION – ZONE 2/22 VARIANTS
        • CML21ATEX3320 or IEC Ex CML21.0038 or CML21UKEX3321
        • II 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T90°C Dc
        • Ta -40°C to +60°C

View_Details

Specifications

Brand

Input Voltage Options

  • AC: 110-277 VAC

Ingress Protection Level

  • IP66/67

Ambient Temperature Range

  • -40°C to +60°C

Fixture Weight excluding Mounts

  • 13.2 kg (29.1 lbs)

Fixture Dimensions excluding Mounts

  • 17.6" x 13.8" x 6.5"
