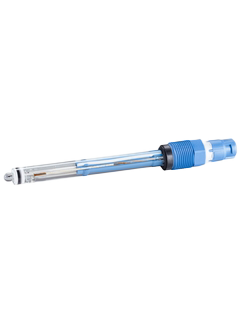

Digital Combined pH/ORP Sensor Memosens CPS16D
Brand: Endress+Hauser AG
Memosens CPS16D is the digital all-rounder for simultaneous pH and ORP measurement offering better process control and increased quality. The sensor features a dirt-repellent PTFE diaphragm for process and environment applications with long-term stable conditions.
Memosens CPS16D is not the latest Memosens generation.
- Long-term monitoring or limit control in processes with stable process conditions:
- Chemical processes
- Pulp and paper industry
- Power stations (e.g. flue gas cleaning)
- Incinerator plants
- Mining
- Wastewater
- Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX and IEC approval for use in hazardous areas.
Features- Simultaneous measurement of pH, ORP and rH values (in rH mode) for a better process overview
- Additional platinum electrode enables constant monitoring of reference impedance and thus sensor quality
- Robust and resistant to poisoning thanks to large PTFE ring diaphragm and reference with ion trap
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi)
- Maximum process safety through non-contact inductive signal transmission
- Enables predictive maintenance due to storage of sensor and process-specific data
- Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Specifications
Brand
Material of Construction
- Glass & PTEF
Process Temperature
- 0° to 135° C (32° to 275° F)
Process Pressure
- 1 to 17 bar (32 to 246 psi)
Temperature Sensor
- NTC 30KΩ
Certifications & Approvals
- ATEX & IEC
Ingress Protection
- IP68
Connection
- Inductive, Digital Connection Head with Memosens Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120, 225, 360 mm (4.72, 8.86, 14.17 inch)
- Chemical Processes
- Pulp & Paper Industry
- Power Stations (e.g. Flue Gas Cleaning)
- Incinerator Plants
- Mining
- Water & Wastewater Treatment
