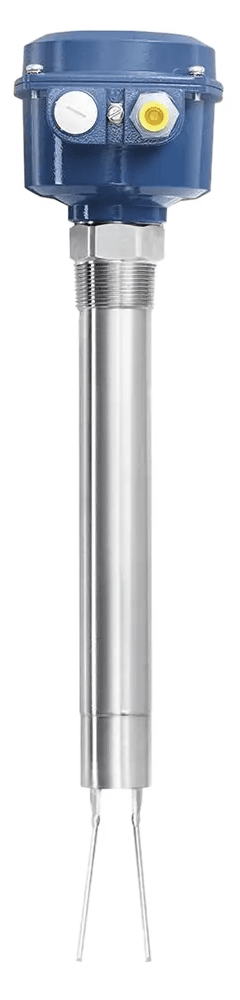

Vibranivo® - VN 5030 Vibration Level Switch
Brand: UWT GmbHApplication Area
The VibranivoĀ® VN 5030 vibrating fork is used in storage and process vessels as a full and demand detector in dry and free flowing solids.
The vibration probe can be flexibly configured up to a length of 4000 mm and puts the switching point where the application needs it.
The high surface quality of the stainless steel probe makes the point level measurement ideal for use in applications with hygiene requirements.
The VN 5030 offers more space for wiring due to the larger housing and additionally a flameproof version for use in GasEx areas.
Features- Maintenance-free sensor for use in many bulk materials
- Probe extension adjustable up to 4000 mm length
- Flameproof version available for use within potentially explosive atmospheres (gas)
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
- Interface Level Measurement
Version
- Pipe Extension
- Interface Detection
- Remote Version
Medium
- Solids
Mounting Position
- Top
- On a Socket
- Horizontal
Ambient Temperature
- -40Ā° C to +60Ā° C (-40 to +140Ā° F)
Process Temperature
- -40Ā° C to +150Ā° C (-40Ā° F to +302Ā° F)
Process Pressure
- -1 bar ā¦ +16 bar (-14.5 psi ā¦ +232 psi)
Minimum Sensitivity
- > 50 g/l (> 3 lb/ftĀ³)
Housing Type
- Standard
- Flameproof
- Increased Safety
Housing Material
- Aluminum
Housing Protection Rating
- IP66, NEMA Type 4X
Threaded Connection
- ā„ R 1-1/2"
- ā„ NPT 1-1/2"
Flange Connection
- ā„ 2" / ā„ DN 100
Hygienic Fittings
- Tri-Clamp 2"
Wetted Materials
- Stainless Steel 1.4301 (304)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Tube: 300 Nm
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 300 mm (11.8")
Maximum Immersion Length
- 4 m (13.15 ft)
Power Supply
- 19-230 Vac
- 12.5 - 36 Vdc
- Universal Voltage: 19-55 Vdc / 19-230 Vac
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- 8/16 mA
- 4-20 mA
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, INMETRO, FM, CSA
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
- Explosionproof/ Flameproof (Ex d)
- Increased Safety (Ex de)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Sliding Sleeve for Variable Immersion Length
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
Documentation
