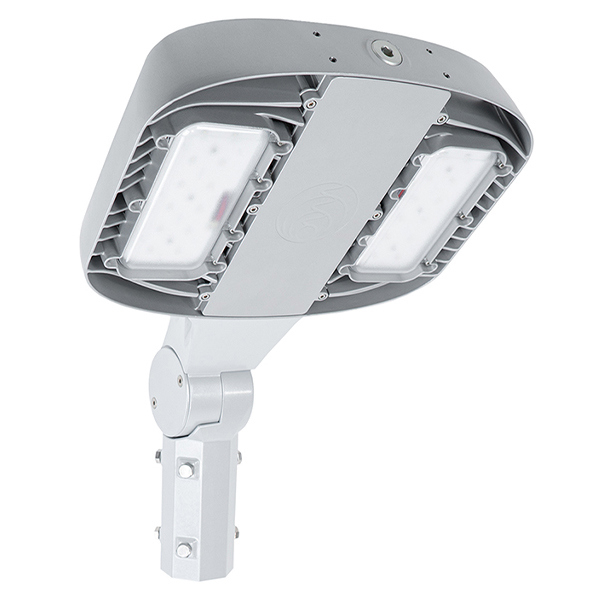

MR Series - 3,000 – 6,000 Lumen Multi-functional Luminaire

Brand: Nemalux Industrial

MR is a versatile, hazardous location-rated LED luminaire designed for industrial applications. It features lightweight, low-profile aluminum housing for ease of installation and a high-efficiency optical design for improved illumination.


MR Features
  • Designed for marine, harsh, and hazardous location use
  • Optimized thermal management of electronics for longevity
  • Wide range of optical distribution patterns for superior lighting quality
  • Field serviceable LED light engines, power supply, and components
  • Approved for through-wiring of several units on a single circuit
  • Built-in junction area for simplified termination
  • 8 mounting options for installation flexibility
  • Approved for use in general, marine, & hazardous locations


MR Certifications and Safety Ratings
  • Certified for general and marine location use under:
      UL 1598, UL 1598A, UL 8750 | CSA C22.2 No. 250.0, CSA C22.2 No. 250.13
  • The MR is also certified for hazardous location use under:
      UL 844 | CSA C22.2 No. 137
  • MR Safety Ratings:
      Class I, Division 2, Groups ABCD, T4 | Class II, Division 2, Groups FG, T4A | Class III | Class I, Zone 2, Group IIC | Zone 22


Effective Illumination for Industrial Applications
  • Light Fixture Performance
      3,000 – 6,000 lumen output multi-functional LED light fixture for typical mounting heights of eight (8) to fourteen (14) feet.
  • Optimized Lighting Effect
      Secondary optics provide advanced optical profiles to reduce the number of lights required. Quantity reductions of up to 50% are possible compared to some competing designs.
  • Superior Results
      Targeted illumination levels and visual comfort are both achievable. Proving that hazardous location-rated lights can deliver excellent optical performance.
  • Dark Sky
      Perimeter bands surround all light-emitting surfaces to provide a full cut-off. Projects requiring Dark Sky (IDA) rating can deploy specific MR models.


Engineered for Extreme Environments
  • Protected Against the Elements
      Copper-free aluminum alloy housing acts as the heat sink, featuring IP66/IP67 protection.
  • Extended Luminaire Life
      Optimized fin spacing promotes debris shedding and convective airflow. It lowers operating temperatures and extends the life of internal components.
  • Improved Visibility
      Impact-resistant polycarbonate lenses protect the LEDs and secondary optics and reduce glare. Visual acuity improves operator comfort and effectiveness.
  • Designed for Harsh Environments
      Multi-layer powder coat provides chemical and UV resistance in corrosive locations.


Simplified Installation & Operation
  • Installation Options
      A variety of mounting brackets permit installation of the MR in challenging locations.
  • Implementation Areas
      Applications for the MR include lighting walkways, platforms, conveyor belts, and building perimeters. Surface-mounted models fit modular buildings and other low-clearance spaces. Solid state components enable deployment on service equipment. Standard UL1598A marine ratings make the MR suitable for saltwater locations.
  • Light Fixture Connection & Maintenance
      A built-in junction area with three ¾” NPT entries allows for through wiring, which reduces the need for external junction boxes. Component replacements with the MR do not need soldering, allowing field repair lifetime extensions with driver and LED module replacements and upgrades.
