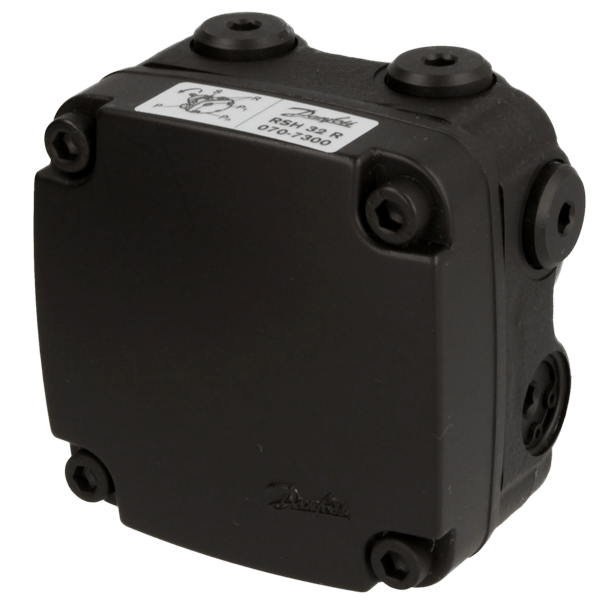

RSH oil pumps are designed for small/medium sized domestic and commercial oil burners up to 285 l/h.

The pumps have a built-in pressure regulator with shut-off function. A special regulation spring is available for feed/ transfer applications.
Features
  • Light and heavy oil
  • 1 or 2-pipe operation
  • 1-stage
  • Built-in pressure regulator with shut-off
  • Ring filter
  • Special spring available for feed/transfer applications

1 - 4 of 4 Part Numbers
RSH 125
RSH 125
  • Flow Capacity - 285 L/hour
RSH 32
RSH 32
  • Flow Capacity - 91 L/hour
RSH 63
RSH 63
  • Flow Capacity - 143 L/hour
RSH 95
RSH 95
  • Flow Capacity - 210 L/hour
1 - 4 of 4 Part Numbers

Specifications

Brand

Adjustment Type

  • Screw

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)

Applications

  • Small/Medium-sized Domestic Oil Burners

BSP Connection

  • G 1/8” Female - Pressure Gauge Port

BSP Inlet

  • G 1/4” Female - Suction Inlet

BSP Outlet

  • G 1/4” Female - Return & Pressure Outlet

Filter

  • 170 cm² / 340 µm - Sizes 63, 95, 125
  • 75 cm² / 340 µm - Size 32

Flow Capacity

  • 91 to 285 L/hr

Maximum System Pressure

  • psi: 58.02 (kPa: 400, bar: 4) - Max.

Media

  • Heavy Oil & Bio Fuels
  • Standard Fuel Gas Oil

Pressure Range

  • psi: 217.6 to 507.6 (kPa: 1,500 to 3,500, bar: 15 to 35)

Speed

  • 1,400 to 3,450 rpm

Storage Temperature

  • -25° to 120° C (-13° to 248° F)

Temperature Range

  • -10° to 120° C (14° to 248° F)

Torque

  • 0.22 to 0.35 Nm (1.95 to 3.1 In/Lbs)

Viscosity

  • 4.3 to 200 cSt - Viscosity Range (Measured in Suction Inlet)
