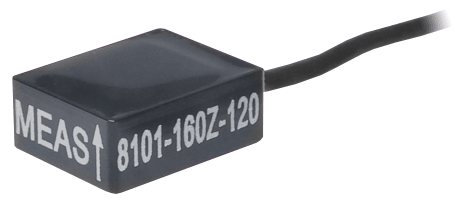

8101 Plug & Play Accelerometer
Brand: American Sensor Technologies Inc
The Model 8101 is a low cost, plug & play accelerometer designed for general-purpose vibration measurements.
The accelerometer is available in ±40g or ±160g range and provides a flat frequency response up to >6 kHz. Featuring stable piezo-ceramic crystals in shear mode, the accelerometer incorporates full power and signal conditioning and is offered in two measurement direction options (X or Z axis).
Features- Two Measurement Directions
- 7 to 36 Vdc Excitation Voltage
- Potted Construction
- Piezo-Ceramic Shear Design
- -40° to 85°C Operating Range
- Integral Cable for Plug & Play
1 - 12 of 1,596 Part Numbers
8101-0040X-001
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 1 Custom Length: Inches
8101-0040X-002
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 2 Custom Length: Inches
8101-0040X-003
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 3 Custom Length: Inches
8101-0040X-004
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 4 Custom Length: Inches
8101-0040X-005
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 5 Custom Length: Inches
8101-0040X-006
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 6 Custom Length: Inches
8101-0040X-007
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 7 Custom Length: Inches
8101-0040X-008
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 8 Custom Length: Inches
8101-0040X-009
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 9 Custom Length: Inches
8101-0040X-010
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 10 Custom Length: Inches
8101-0040X-011
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 11 Custom Length: Inches
8101-0040X-012
- Range - ± 40 G
- Measurement Direction - X-Axis
- Cable Length - 12 Custom Length: Inches
1 - 12 of 1,596 Part Numbers
Specifications
Accuracy
- ± 2 % of Full Scale Output - Non-Linearity
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 6 kHz
Cable Material
- PFA Insulated
Current
- 800 µA - Total Supply
Electrical Connectors
- 4 x 32 AWG Conductors PFA Insulated
Enclosure, Body Material
- Aluminum - Anodized
Environmental Protection
- IP65
Excitation Voltage
- 7-36 Vdc
Frequency
- > 30,000 Hz - Resonant Frequency
- 2 to 6,000 Hz at ± 1 dB
Insulation Resistance
- > 100 megaohms at 100 Vdc
Load Impedance
- < 100 ohms - Output Impedance
Mounting
- Surface Mounting - Ground Isolation
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- ± 2 V - Full Scale Output Voltage
Output Noise
- 0.008 G RMS - Residual Noise
- 10 Hz to 1 kHz µg√Hz - Spectral Noise
Seat / Seal Material
- Epoxy Sealed - Humidity (Case)
Sensitivity
- < 8 % - Transverse Sensitivity
- 12.5 to 50 mV/g at ± 30 %
Shock
- 2,000 G
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- 2.5 Vdc - Bias Voltage
Update Time
- 30 milliseconds - Warm-Up Time
- Asset Monitoring
- Data Loggers
- Impact Monitoring
- Machine Health Monitoring
- System Wake-Up Switch
- Product R&D
