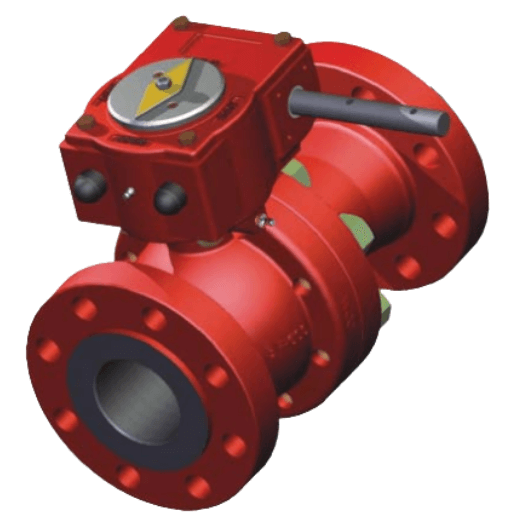

Series FB Floating Ball Valve
Brand: Cameron
AOP offers a wide range of floating ball valves. The designs have been developed based on our customers requirements.
When you specify an AOP ball valve, you have selected a premier product. With our state of the art manufacturing techniques, our valves are manufactured to the highest standards ensuring superior performance.
AOP ball valves are stocked by a network of authorized distributors to service the petroleum producing and refining industries.
Features- Stem is back-seated and positively retained: cannot be removed with the valve in service
- Stem lube fitting and weather seal
- Fire tested and certified to API 607 latest edition
- TFM, Nylon, and Peek seats available
- Anti-static device
- Standard locking handle
- Conforms to NACE MR0175/ISO 15156 for non-buried service, with stainless steel internals
- Available in both standard bore and full bore
- Double stem flat design indicates ball position
Specifications
Brand
Actuator Type
- Bare Stem
- Gear Operator
- Gear Operator with Locking Device
- Handle with Locking Device
Approvals & Certifications
- API 607 - Fire Tested
- ISO 5211
Ball Material
- 316 Stainless Steel NACE - A 105 1 MIL ENP
Bearing Material
- Nylon - Stem Bearing
- PTFE - Stem Bearing
Bore Size
- 1” to 8” (25.4 to 203.2 mm)
Enclosure, Body Material
- ASTM A216 WCC Carbon Steel
Flange Size - 1” (DN 25)
- 1” (DN 25) - 150# ASME
- 1” (DN 25) - 1500# ASME
- 1” (DN 25) - 300# ASME
- 1” (DN 25) - 600# ASME
- 1” (DN 25) - 900# ASME
Flange Size - 10” (DN 250)
- 10” (DN 250) - 150# ASME
- 10” (DN 250) - 300# ASME
Flange Size - 1½” (DN 40)
- 1½” (DN 40) - 150# ASME
- 1½” (DN 40) - 1500# ASME
- 1½” (DN 40) - 300# ASME
- 1½” (DN 40) - 600# ASME
- 1½” (DN 40) - 900# ASME
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150# ASME
- 2” (DN 50) - 1500# ASME
- 2” (DN 50) - 300# ASME
- 2” (DN 50) - 600# ASME
- 2” (DN 50) - 900# ASME
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150# ASME
- 3” (DN 80) - 300# ASME
- 3” (DN 80) - 600# ASME
- 3” (DN 80) - 900# ASME
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150# ASME
- 4” (DN 100) - 300# ASME
- 4” (DN 100) - 600# ASME
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150# ASME
- 6” (DN 150) - 300# ASME
- 6” (DN 150) - 600# ASME
Flange Size - 8” (DN 200)
- 8” (DN 200) - 150# ASME
- 8” (DN 200) - 300# ASME
Flange Type
- Flanged Raised Face (RF) - End Connection
- Flanged Ring Typical Joint (RTJ) - End Connection
Handle Assembly Material
- A536 Grade 65-45-12
Materials of Construction
- ASTM A216 WCC Carbon Steel - Adapter
- Steel - Lube Fitting & Stop Pin
- Zinc-Plated Steel - Stop Plate
NACE & NIST
- NACE MR-0175, ISO 15156
Nut & Bolt Material
- ASTM A193-B7 - Studs
- ASTM A194 2H - Hex Nut
- ASTM A574 Grade 5 - Handle Bolt
Port
- Full
- Standard
Pressure Range
- psi: 285 to 3,405 (kPa: 1,965 to 23,480, bar: 19.65 to 234.8)
Ring Material
- Spring Steel - Retaining Ring
Seat / Seal Material
- FKM - Body & Stem Seal
- GLT - Seal
- HNBR - Body & Stem Seal
- Nylon - Weather Seal & Seat
- PEEK - Seat
- TFM - Seat
Spring Material
- Inconel X-750 - Anti Static
Stem Material
- 316 Stainless Steel NACE (4130/4140 1 MIL ENP)
- Nylon - Stem Washer
- Teflon - Stem Washer
Trim Material
- 316 Stainless Steel
- Carbon Steel
Valve Size
- 1” to 10” (25 to 250 mm)
