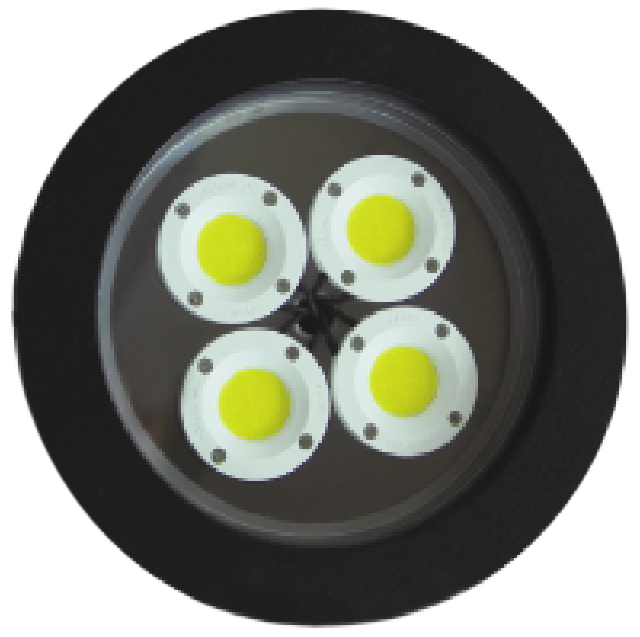

L1102 High Humidity & Heat Resistant LED Lighting
Brand: Top Hi-Tech Inc
- UL 1598 Luminaires
- CSA C22.2 No.250.0
- IP67 / NEMA 6
- AC LED Driver-less Technology
- Intended for Use in High Ambient Temperature Environments
- Up to 100° C Heat Resistant
- High efficacy
- Salt spray 1000 hrs passed
Specifications
Brand
Certifications & Approvals
- UL
- CSA
Environmental Protection
- IP67
- NEMA 6
Rated Voltage (±10%)
- 120 V / 208 V / 220 V / 277 V / 480 V (Only 60 W) AC
Watts (±10%)
- 60 W / 80 W
Amps
- 60 W - 120 V: 0.50 A, 208 V: 0.29 A, 220 V: 0.27 A, 277 V: 0.22 A, 480 V: 0.13 A
- 80 W - 120 V: 0.67 A, 208 V: 0.38 A, 220 V: 0.36 A, 277 V: 0.29 A
Color of LED Light
- 3000K (Warm White)
- 5000K (Cool White)
Ambient Temperature
- 85° C Heat Resistant Application: 66° to 85° C
- 100° C Heat Resistant Application: 86° to 100° C
Power Factor
- cos ≥ 0.9
CRI
- Cool White ≥ 70
- Warm White ≥ 80
Lumen (± 10%)
- 80 W - 3000K: 7,600 lm, 5000K: 8,000 lm
- 60 W - 3000K: 5,700 lm, 5000K: 6,000 lm
Beam Angle
- Y-110°
- X-110°
Frequency
- 50/60 Hz
Enclosure / Body Material
- Enclosure: Aluminum Alloy
Material of Construction
- Tempered Glass: IEC Standards Impact resistant > 4 Joule
- Screws: Stainless Steel
LED Service Life
- 60,000 hours
Entrance Thread
- 1 x NPT 3/4"
Mounting
- Rotatable
- Ceiling 90°
- Tripod Adjustable
- Stanchion 25°
- Pendant
- Hanging Mount
- Wall Mount
- Long Adjustable
Net Weight
- 5.5 kg (12.1 lb)
- Pulp & Paper Industry
- Power Plants
- Smelter
- Casthouse
- Automotive Industry
- Textile Industry
- Cable Manufacturing
- Glass Factory
