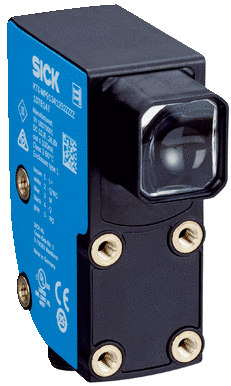

KTX Prime Contrast Sensor

Brand: Sick AG
Add Product to My Catalog

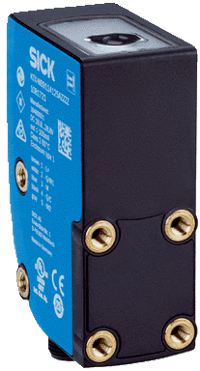

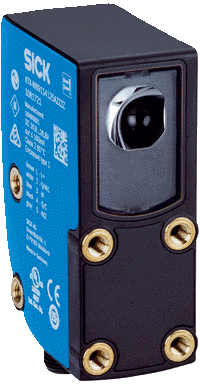

IM00719592.png IM00719594.png IM00719591.png
Outstanding performance for a variety of applications, even with difficult framework conditions: The new KTX Prime with familiar hole pattern, high-precision RGB LED and VISTAL® housing impresses with TwinEye-Technology, color mode, high switching frequency, excellent gray line resolution, 7-segment display and IO-Link.

The response time of 10 µs and a jitter of 5 µs ensure accurate detection of contrast differences, even at high machine speeds.

Thanks to various teach-in processes, integrated color mode and variable sensor adjustment, commissioning is more flexible and the processes more stable.

The KTX Prime provides additional diagnosis and analysis data via IO-Link. The new KTX Prime - it can easily do more.
Features
  • 1:1 replacement for existing KT series - assembly compatibility
  • TwinEye-Technology for better performance on glossy or jittering materials - less machine downtime and more process stability
  • Multi-functional sensor adjustment for individual sensor adjustment
  • Excellent contrast resolution and a large dynamic range for good performance on complex materials
  • High flexibility thanks to a range of teach-in processes
  • Integrated color mode - stable detection even with complex color differences
  • Job storage in sensor - flexible process design and format change
  • Diagnostics and visualization as well as easy format change via IO-Link

View_Details

Specifications

Brand

Sensing Distance

  • 13 mm, 40 mm, 25 mm, 150 mm, 70 mm, 200 mm

Type of Light

  • LED RGB

Light Spot Size

  • 30 mm x 35 mm
  • Ø 10 mm
  • Ø 3.3 mm
  • 5.3 mm x 1.2 mm
  • 3.9 mm x 0.9 mm
  • 1.2 mm x 5.3 mm
  • 3.8 mm x 0.9 mm
  • Ø 0.9 mm
  • 0.9 mm x 3.9 mm
  • 0.9 mm x 3.8 mm
  • Ø 12 mm

Switching Frequency

  • 11.5 kHz, 50 kHz, 70 kHz, 6.25 kHz, 25 kHz

Response Time

  • 3 to 80 µs

Switching Output

  • NPN
  • PNP, NPN
  • PNP
  • Push-Pull: PNP/NPN

Adjustment

  • 1-Point Teach-in, 2-Point Teach-in, Teach-in Dynamic, Auto Mode
  • N-Point Teach-in, 2-Point Teach-in, Teach-in Dynamic, Auto Mode

Connection Type

  • Male Connector M12, 4-Pin
  • Male Connector M12, 5-Pin

Communication Interface

  • IO-Link
  • Analog

Certifications & Approvals

  • CE
  • cULus Listed

Documentation

Data Sheets

Brochure
