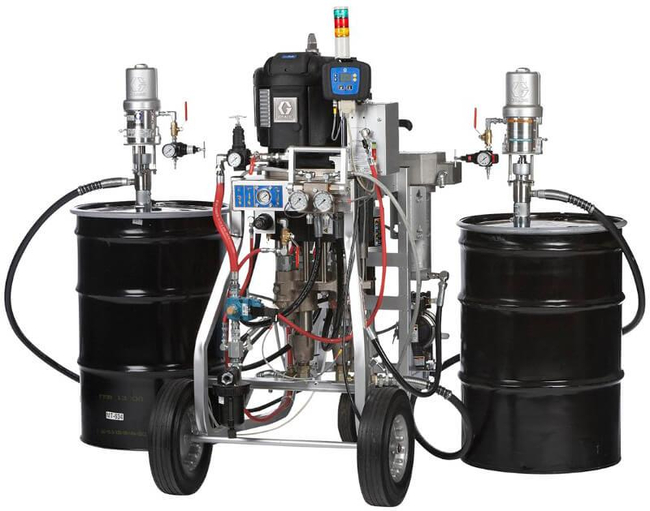

XP50 Quick-Set Packages

XP50 Quick-Set Packages

Brand: Graco, Inc
Add Product to My Catalog

Graco XP Plural-Component Sprayers are designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results.

When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
Features
  • Reduced material waste
  • No more throwing away unused mixed material at the end of the day
  • Save money by using less clean-up solvent
  • Consistent material quality - no more guesswork or human error in measuring materials
  • Easy to operate - minimal training required
  • Reduced maintenance costs
  • Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
  • Optimized for quick-setting hybrid and elastomeric urethane coatings
  • Include a modified mix manifold (typically remove mounted) with fluid pressure gauges and solvent valves for both A and B materials, plus a shorter 10 ft static mix line to the spray gun. Heated hose is optional.
  • Ideal replacement for Graco King Hydra-Cat™ quick-set packages

Specifications

Brand

Air Inlet Filtration

  • 40-micron Filter / Separator Included

Air Inlet Size

  • 3/4” NPSM Female

Bare XP-h System with No Heaters, Solvent Flush Pump, or Hoppers

  • 204 kg

Bare XP35, XP50, or XP70 System with No Heaters, Solvent Flush Pump, or Hoppers

  • 193 kg

Combined Fluid Output (cc/cycle)

  • See Models Section in Instruction Manual.

Fluid Flow at 40 cpm

  • See Models Section in Instruction Manual.

Fluid Gauge Manifold Outlets

  • 1/2” NPT Female

Fluid Mix Manifold Inlets

  • 1/2” NPT Female Ball Valves

Fluid Pump Inlets without Hoppers

  • 1-1/4” Male NPSM

Flush Pump Suction Tube

  • Aluminum

Full XP-h System with Heaters, Solvent Flush Pump, & Hoppers

  • 273 kg

Full XP35, XP50, or XP70 System with Heaters, Solvent Flush Pump, & Hoppers

  • 261 kg

Gravity Feed with 7 Gallon (26 Liter) Hoppers

  • 200 to 20,000 Cps (Pourable)

Hazardous Areas

  • EX II 2 G C IIA T2, NOTE: XP-h Pump Packages (284xxx) are Not Ex Rated.

Hoses

  • Nylon Core

Housings & Manifolds

  • Carbon Steel with Electroless Nickel Plating

Hydraulic Fluid Consumption (XP-h Models Only)

  • 0.76 Liters Per Cycle

Maximum Air / Hydraulic Oil Working Pressure

  • See Models Section in Instruction Manual.

Maximum Air Pressure Supply to the System

  • 12 bar, 1 MPa

Maximum Feed Pressure from Remote Source

  • 17 bar, 1.7 MPa

Maximum Fluid Temperature

  • 71°, C

Maximum Fluid Working Pressure

  • See Models Section in Instruction Manual.

Maximum Lifetime

  • Indefinite with Recommended Maintenance & Periodic Rebuilds for Critical Parts.

Maximum Storage Time

  • 5-Years (To Maintain Original Performance, Replace Soft Seals after 5-Years of Inactivity.)

Miscellaneous Parts

  • Plated Carbon Steel, Stainless Steels, Carbide, Acetal, UHM-WPE, Nylon, PTFE Solvent Resistant Plastics

Mix Manifold Material Outlet

  • 1/2” NPT Female

Operating

  • 4-54°, C

Power Efficiency Factor (XP70)

  • 2.12 M³, Compressed Air / 1 Liter Sprayed Material at 7 bar (0.7 MPa)

Pressure Feed

  • Any Viscosity that Will Not Require Feed Pressure more than 15 % of Outlet Pressure

Pressure Ratio

  • See Models Section in Instruction Manual.

Pump Packings

  • Carbon-Filled PTFE, Proprietary UHMWPE

Sound Power

  • 7 bar, 0.7 MPa

Sound Pressure

  • 7 bar, 0.7 MPa

Storage

  • -1-71°, C

XP Pump Outlets

  • 30 Mesh

XP-h Pump Only

  • 132 kg

XP35

  • 50 scfm at 100 psi/gpm (1.42 M, #xb3, / min at 7 bar, 0.7 MPa)

XP35, XP50, or XP70 Pump Only

  • 130 kg

XP50

  • 60 scfm at 100 psi/gpm

XP70

  • 75 scfm at 100 psi/gpm

XTR Spray Gun

  • 60 Mesh
