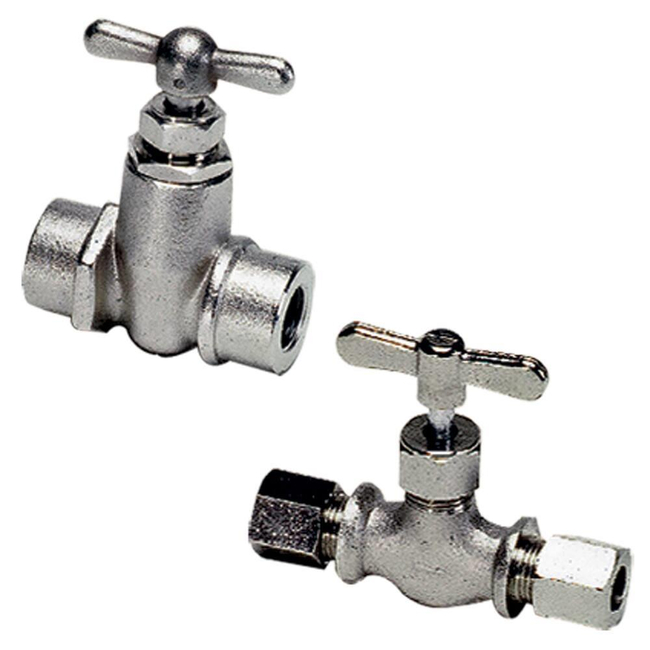

Needle Valves
Brand: Legris - by ParkerParker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.
FeaturesRobust and Easy-to-Use
- Accurate flow control
- Forged brass for improved long-term mechanical strength
- Robust stem for good operational reliability
- Corrosion resistance
Wide range
- Two materials (nickel-plated brass and stainless steel) suitable for many applications
- Numerous valve and safety accessory configurations
Specifications
Brand
Handle Type
- Nickel-Plated Brass
- Brass
- Stainless Steel
Nut Material
- Nickel-Plated Brass
- Stainless Steel
O-Ring Material
- PTFE
- NBR
Sleeve Material
- Brass
Stem Material
- Stainless Steel
Minimum Working Temperature
- -20° C
Maximum Working Temperature
- 100° to 180° C
Maximum Operating Pressure
- 10 to 120 bar
Quantity Per Box
- 1 to 10
Weight
- 0.083 to 0.483 kg
Applications
- Water Circuits
- Machine Tools
- Rubber Industry
- Packaging
- Textile
- Pneumatics
Media
- Brass: Compressed Air, Water, Industrial Fluids, etc.
- Stainless Steel: Many Fluids
Specifications Met
- PED module A - diameters greater than 25 mm, Machinery Directive, RoHS, REACH
Flow Rate
- 6.98 to 22.98 Nl/m at 6 bar (H₂O)
- Allow/Stop Fluid Circulation on Industrial Circuits with Accuracy
- Suitable for Slightly Corrosive Industrial Fluids
