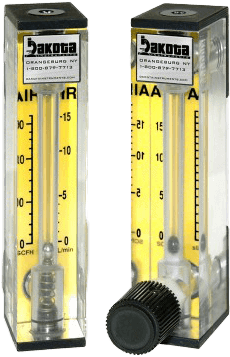

Water Flow Meter - Acrylic, Brass Fittings
Brand: Dakota Instruments, IncAvailable for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Water flow values.
Viton® Seals, 1/8" FNPT and Brass End fittings are standard.
The float material varies based on the metering range (316 SS, Carboloy, Glass).
Available for metering flow rates from 20 mL/min (0.3 GPH) to 1400 mL/min (22 GPH).
Features- Yellow Backed Scales in English or Metric Measures
- Customer Convertible Panel to Partial or Full In-Line Mounted Configurations
- Available With or Without Built-in Low Hysteresis Needle Valves
- Simple Dis-assembly and Assembly for Cleaning
- Stable, Easy to Read Float
1 - 12 of 14 Part Numbers
6A0101BN-WA
6A0101BV-WA
6A0103BN-WA
6A0103BV-WA
6A0105BN-WA
6A0105BV-WA
6A0107BN-WA
6A0107BV-WA
6A0109BN-WA
6A0109BV-WA
6A0111BN-WA
6A0111BV-WA
1 - 12 of 14 Part Numbers
Specifications
Brand
Accuracy
- ± 5 % of Full Scale reading
Maximum Temperature
- 65° C (150° F)
Maximum Pressure
- 6.9 bars (100 psig)
Meter Block
- Clear, Machined Acrylic
Float Materials
- Black Glass, Stainless Steel, Tungsten Carbide (Carboloy)
O-Ring Seals
- Viton
Fittings
- Brass or 316 Stainless Steel 1/8" NPT Female Connections, Built-in Needle Valves & Seal Plugs
