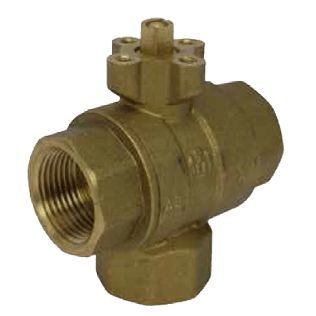

599 Series 3-Way Ball Valve
Brand: Valve SolutionsThe 599 Series 3-Way Ball Valves can be coupled to any commercially available actuator to provide three-way mixing or diverting flow control.
The ball valves are 1/4-turn rotary control valves and are available in 1/2" to 2" line sizes.
Features- ANSI 250 Valve Body Rating
- 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators
- Available with chrome-plated brass ball and brass stem or stainless steel ball and stem
- Can be used as either a mixing or a diverting valve
- Blow-out proof stem withstands high pressure universal actuator mounting
- Actuator and bracket can be rotated (90° Increments)
- Standoffs provide a thermal barrier between the actuator and the valve
- Operating handle for manual operation
Specifications
Brand
Approvals & Certifications
- ANSI
Ball Material
- Chrome-Plated Brass
- Stainless Steel
Differential Pressure
- psi: 35 to 60 (kPa: 241 to 413, bar: 2.41 to 4.13)
Enclosure, Body Material
- Forged Brass ASTM B283
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1-1/2” NPT Female
- 1-1/4” NPT Female
- 2” NPT Female
- 3/4” NPT Female
O-Ring Material
- Ethylene Propylene (EPR)
Process Temperature
- 2° to 121° C (35° to 250° F)
Rotation
- 0° to 90° (Angle of Rotation)
Seat / Seal Material
- Reinforced PTFE
Static Pressure
- psi: 360 (kPa: 2,480, bar: 24.8)
Stem Material
- Brass
- Stainless Steel
