Warrick Plug-in Control Module, Series 16M/HM/DM/VM

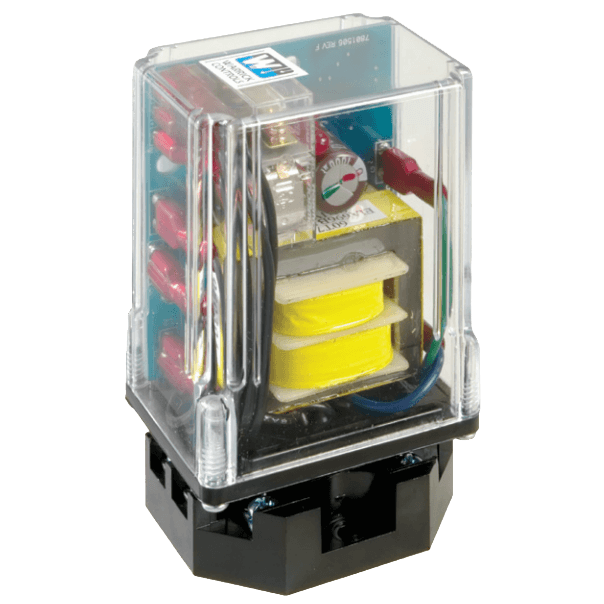

Warrick Series 16M/16HM/16DM/16VM Solid-State Plug-In Control Module

Brand: Gems Sensors, Inc
Add Product to My Catalog

Warrick Plug-in Control Module, Series 16M/HM/DM/VM
Series 16M - General Purpose Control  New Microprocessor Design
  • Designed for either differential or single-level service. U.L. "Motor Controller" listing, 8 pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm.
Series 16HM - High Sensitivity Control
  • Series 16HM is similar to Series 16M but provides higher sensitivity up to 5.5 million ohm/cm. Probe voltage is 12 Vdc for applications with low conductive media.
Series 16DM - DPDT Load Contact
  • Similar to Series 16M but with DPDT load contacts. Eliminates the need for slave relays. 11 pin octal plugs. Requires little panel space. General purpose single-level or differential applications. U.L. listed.
Series 16VM - Field Selectable Sensitivity
  • Similar to Series 16M but with the added flexibility of field adjustable sensitivity, made possible through external setpoint resistors. Uses 11 pin octal socket. U.L. listed.
Features
  • Compact size
  • Solid state reliability
  • Modular plug-in design
  • LED monitoring
  • Various time delays
  • U.L. "Motor Control"
  • Low voltage sensor

View_Details

Specifications

Brand

Adjustment Type

  • Factory Set (Pre-Set)
  • Field Adjustable

Applications

  • Alarms
  • Point Level
  • Pump Control
  • Single-Level Service, Differential Service
  • Valve Control

Approvals & Certifications

  • UL (C,US): 508 File E44426

Delay Time

  • 0 to 90 seconds - 16M Series
  • 1 to 20 seconds - 16HM, 16DM, 16VM Series

Electrical Connectors

  • DIN Mount
  • Octal Socket - 16M & 16HM Series (8-Pin), 16DM & 16VM (11-Pin)

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 10 A, Resistive 1/3 hp - Series 16M & 16HM, Series 16VM
  • 5 A Resistive, 1/10 hp - Series 16DM

Environmental Protection

  • IP10
  • IP66
  • NEMA 1
  • NEMA 4

Sensitivity

  • 0 to 1 MΩ/cm - Series 16M, Series 16DM (Factory Set) & Series 16VM (Field Adjustable)
  • 0 to 5.5 MΩ/cm for Series 16HM

Supply Voltage

  • Primary Voltage (208/240): 187-255 Vac, Max.
  • Primary Voltage: 120 Vac
  • Primary Voltage: 208-240 Vac
  • Primary Voltage: 24 Vac
  • Primary Voltage: 240 Vac (+10 % / -15 %)
  • Secondary Voltage: 12 Vac, 1.5 mA for Series 16M, 16DM & 16VM
  • Secondary Voltage: 12 Vdc for Series 16HM

Switch Type

  • DPDT - 16DM Series

Temperature Range

  • -40° to 65° C (-40° to 150° F)

Termination

  • Screw Connector

  • Single-Level Service
  • Differential Service
  • Point Level
  • Alarms
  • Valve Control
  • Pump Control

Documentation

Data Sheets
