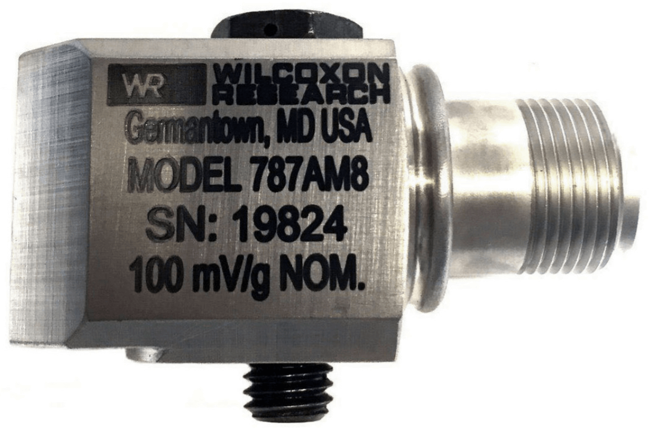

Model 787A-M8-IS Low Profile Industrial Accelerometer
Brand: Wilcoxon Sensing TechnologiesSide exit, general-purpose, case isolated, MIL-C-5015 connector, M8 captive bolt, 100 mV/g.
Features- Corrosion resistant
- Hermetically sealed
- Ground isolated
- ESD protection
- Reverse wiring protection
- Mounts in any orientation
- Hazardous area certified - intrinsically safe
- Ideal for low-clearance mounting locations, rugged industrial environments, and conveyors and drives
Specifications
Approvals & Certifications
- ATEX Ex ia IIC T4 Ga
- CE
- CSA (C,US) Class I, Div. 1, Grade A, B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, Class I, Zone 0, Ex ia IIC T4, Class I, Zone 0, Aex Ia IIC T4
- IEC, IECEx
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cable (J10 / J9T2A)
- Mating Connector: R6 Typical
- Output Connector: 2-Pin, MIL-C-5015 Style
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- Corrosion-Proof
- Hazardous Area
- Intrinsically Safe
Frequency
- Frequency Response (± 10 %): 1 to 5,000 Hz
- Frequency Response (± 3 dB): 0.7 to 10,000 Hz
- Resonance Frequency, Mounted, Min.: 22 kHz
Mounting
- M8 Captive Hex Head Screw with 0.046" Diameter Safety Wire Hole
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-28 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 80 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Max.
- Electromagnetic Sensitivity, Equivalent G, Max.
- Sensitivity, ± 5 %, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit, Min.: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage: 12 Vdc
