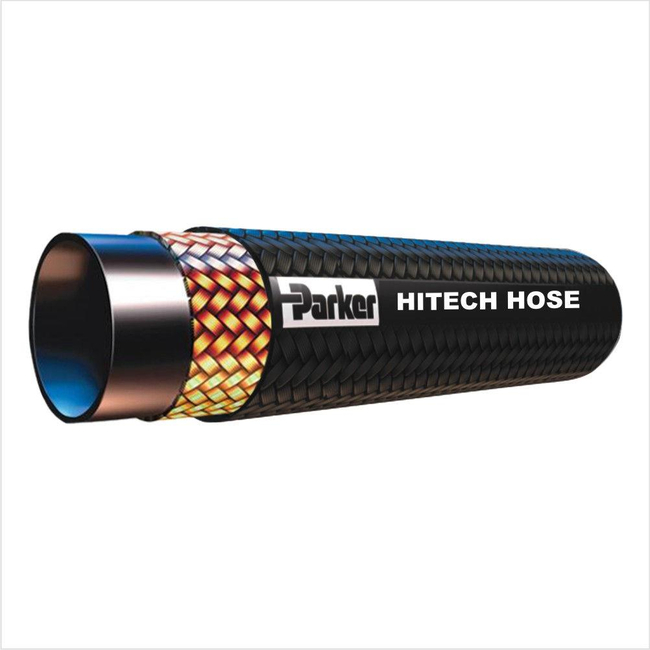

Hitech - Hydraulic Hose
Brand: Parker HannifinHitech hose is Parker properietary design to meet the industry requirement & international quality in order to provide consistency of performance.
Universal one-wire construction to meet global industry standards.
It’s a one wire braid hose with CPE tube and the safety factor 4:1.
With the excellent quality and flexibility, it offers a long service life and a wide range of fluid compatibility to meet the requirements.
Features- The hose cover is textile braid black colour.
- The temperature range is from -40 deg C to 150 deg C.
- Can be used in all conditions with ease.
Specifications
Brand
Applications
- Compressed Air / Hydraulic
Hose I.D. (inch)
- 1/2” - 2-1/2”
Hose I.D. (mm)
- 12.7 - 63.5
Hose I.D. (Size)
- -8 to -40
Hose O.D. (inch)
- 0.76 - 2.97
Hose O.D. (mm)
- 19.3 - 75.4
Maximum Working Pressure (bar)
- 69 - 34
Maximum Working Pressure (Mpa)
- 6.9 - 3.4
Maximum Working Pressure (psi)
- 1000, 500
Maximum Working Temperature (°C)
- 150° C
Maximum Working Temperature (°F)
- 302° F
Media
- Compressed / Hydraulic Oils
Minimum Bend Radius (inch)
- 3.5 - 22.05
Minimum Bend Radius (mm)
- 90 - 560 90 to 560
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
Temperature Range (°C)
- -40° to + 150° C
- Hot oil lines, rotary oil / air compressor lines.
- Construction & general industrial applications.
