FULFLO FB SINGLE BAG FILTER VESSELS | CARBON STEEL, 304 & 316 SS, ASME CODE DESIGN FOR PROCESS LIQUID FILTRATION

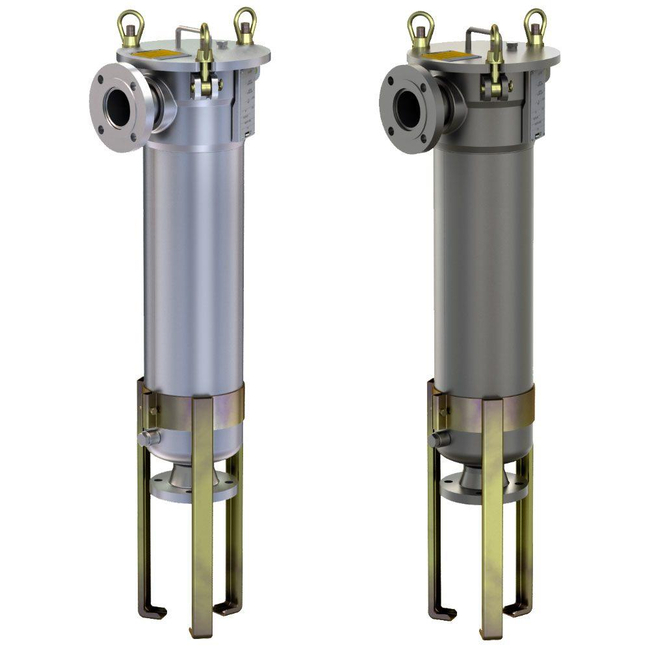

Fulflo FB Single Bag Filter Vessels | Carbon Steel, 304 & 316 SS, ASME Code Design for Process Liquid Filtration

Brand: Parker Hannifin
Add Product to My Catalog

The Fulflo® FB series of bag and strainer filter vessels provides excellent filtration in a wide range of industrial and chemical liquid filtration applications.

All details of design, materials, construction and workmanship of the FB Filter Bag Vessel Series conform to ASME code and are available in non-code design and construction.
Features
  • Single O-ring design closure assures quick, positive cover sealing (O-rings are not required to seal filter bags)
  • Swing bolts with eye-nuts for fast, easy opening and closing of cover
  • Buna-N O-ring standard with EPDM, Viton® and fluoropolymer available
  • Maximum design pressure is 150psi (10.3 bar) at 450°F (232°C), (Limited to 250°F by the standard Buna-N O-ring)
  • ASME Code UM stamp is standard (U stamp is optional)
  • Threaded vent and drain connections
  • Adjustable leg height and threaded or flanged inlet and outlet
  • Side inlet cover opens without disconnecting piping
  • Side inlet, bottom outlet, and crevice-free welded design provide a smooth interior for easy wash-out and cleaning
  • Hinged cover for easy opening
  • Positive seal of “C” style flex band bags prior to closing the vessel cover
  • Optional hold-down assembly for conversion to “G” style bag media seal available

Specifications

Brand

Filter Construction

  • Bag Filter Vessel

Flow Rate

  • 80 gpm, 160 gpm

Function

  • Clarification

Industry Standards

  • ASME Sec. VIII, Div. 1, U Stamp

Markets

  • Industrial / Inks, Paints & Coatings / Food & Beverage

Maximum Operating Pressure (psi)

  • 175 psi (12.1 bar)

Maximum Operating Temperature (°F)

  • 400° F

Seal Material

  • Buna-N (250° F Max.)

  • Potable Water Filtration
  • Process Water Filtration
  • Filtration of Coatings
  • Lubricant Filtration
  • Coolant Filtration
  • Cutting Oil Filtration
  • Solvent Filtration
