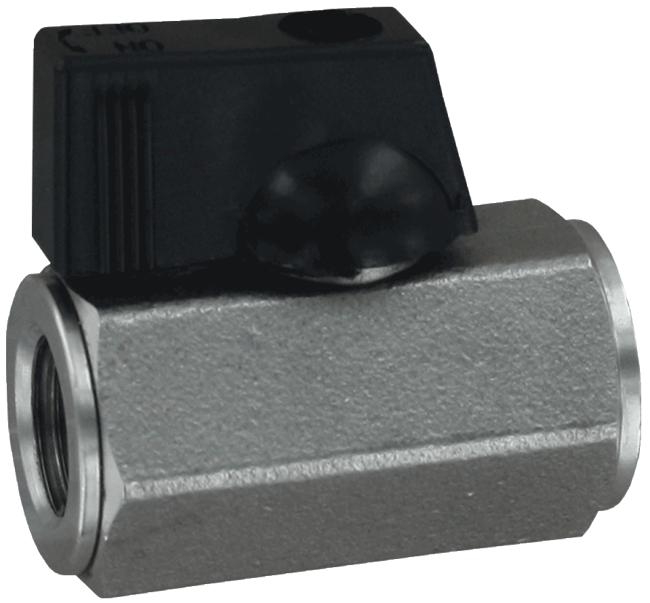

Series SMV2 Mini Stainless Steel Ball Valve
Brand: Dwyer Instruments, LLCThe Series SMV2 Mini Stainless Steel Ball Valve is ideal for small, confined spaces, where larger valves are unsuitable.
The 316SS and PTFE wetted materials are excellent for applications with corrosive media. The handles are made of a rigid nylon for extended durability. Installation is made easy with a choice of FxF or MxF process connections. PTFE ball seats provide broad media compatibility and bubble tight shutoff.
Features- High Working Pressure
- Abrasion Resistant
- Easy to Install
- Economical
- Wide Chemical Compatibility
1 - 8 of 8 Part Numbers
1 - 8 of 8 Part Numbers
Specifications
Brand
Approvals & Certifications
- RoHS
Enclosure, Body Material
- Cast 316 Stainless Steel - Valve Body
Media
- Liquids & Gases
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 1/8” NPT Female
- 3/8” NPT Female
Pressure Range
- psig: 800 to 1,000 (kPa: 5,110 to 6,894.76, bar: 51.1 to 68.9)
Seat / Seal Material
- PTFE - Ball Seat
Stem Material
- 316 Stainless Steel
Temperature Range
- 100° C (212° F)
Valve Type
- Manual
