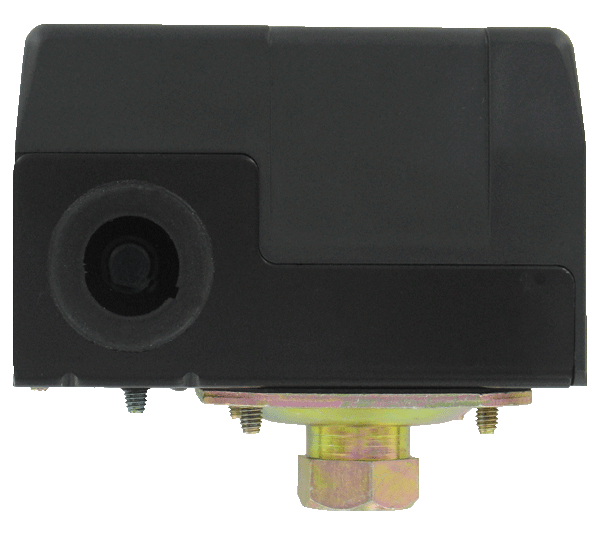

Series CXA Water Pump Pressure Switch
Brand: Dwyer Instruments, LLCThe Series CXA Water Pump Pressure Switches have been proven reliable for controlling automatic water systems.
These switches are very popular for use on water well pumps and pumping systems. The set point and dead-band are both easily adjustable via screws inside the cover.
For ease of installation, the switches come with a 1/4" female NPT process connection and can be mounted in any orientation. The series CXA’s simple design makes it a great switch for an installer at any skill level.
Features- The set point and deadband are both easily adjustable reducing time to install and operation
- Mounting in any position and feature simple makes a reliable switch that can be installed by any skill level
1 - 6 of 6 Part Numbers
1 - 6 of 6 Part Numbers
Specifications
Brand
Adjustment Type
- Internal Screws
Approvals & Certifications
- CE
Conduit Connection
- 7/8” Hole for 1/2” Conduit Hub (2 Places)
Deadband
- psig: 15 to 40 (kPa: 100 to 276, bar: 1 to 2.7)
Electrical Connectors
- Screw Terminal
Electrical Rating
- 1.6 A at 240 Vdc
- 12 A at 240 Vac
- 20 A at 120 Vac
- 3.1 A at 120 Vdc
- 8.6 A at 32 Vdc
- 9.6 A at 240 Vac (3-Phase)
Media
- Gas
- Liquids & Gases
Mounting Position
- Switch Can be Installed in Any Position
NPT Connection
- 1/4” NPT Female
Set Point - Decreasing
- bar: 1 to 10.3
- kPa: 100 to 1,030
- psig: 15 to 150
Set Point - Increasing
- bar: 1 to 10.3
- kPa: 100 to 1,030
- psig: 15 to 150
Switch Type
- DPST Snap-Action (Normally Open or Normally Closed)
System Pressure
- bar: 14.1
- kPa: 1,400
- psig: 204 (For 35 to 150 psig Model)
Temperature Range
- 60° C (140° F)
Wetted Materials
- Silicone
- Stainless Steel
- Steel
- Water System Applications
- Electric Water Pumps
- Well Pumps
- Pumping Systems
