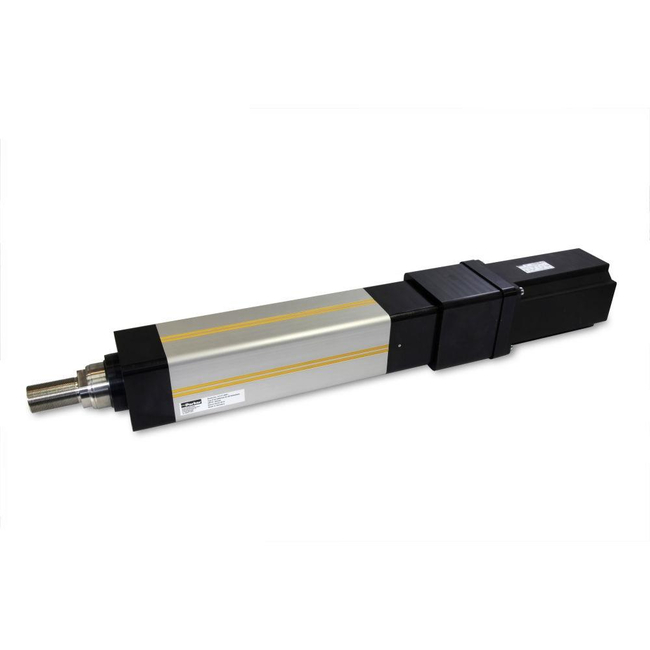

ETH032 High-Force Screw Drive Electric Cylinder/Actuator
Brand: Parker HannifinThe Parker ETH is the next generation of electric linear thrust cylinder/actuator product that is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance.
Utilizing a completely new integrated drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density.
Parker ETH032 high force ball screw electric linear cylinder/actuator offers compact design and high thrust to 832lbs. The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation.
The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
Features- Unrivalled power density — high forces and small frame size electric cylinder/actuator
- Long service life
- Reduced maintenance costs with easy access lubrication ports
- Reduced noise emission
- Pneumatic ISO flange conformity (norm DIN
- ISO 15552) for easy conversion
- Integrated anti-rotation device
- Optimized for safe handling and simple cleaning
- Parker offers the complete solution - drive/controllers, motors and gearboxes to pair with the ETH
- Available with IP54 (standard) or IP65 (optional) based on application needs
- Optional ATEX certification for equipment group II, category 2 in explosive gas atmospheres
- High mechanical efficiency - up to 90%
- Toothed belt drive available for parallel motor mounting
- Several rod end options - including linear rod guide module for additional side load support
- Accessories with integrated force sensors help to allot and even to control forces precisely
Specifications
Brand
Additional Protection Option
- None
Approvals & Certifications
- ATEX (Optional)
Corrosion Resistant Option
- Yes (Stainless Steel)
Drive Type
- Screw
IP Protection Rating
- IP54 IP65 (Optional)
Maximum Acceleration (Inch/S2)
- 472
Maximum Acceleration (m/S2)
- 12
Maximum Speed (inch/sec)
- 39.37
Maximum Speed (m/sec)
- 1
Maximum Stroke (inch)
- 39.3
Maximum Stroke (mm)
- 1000
Maximum Thrust (Lbs)
- 832
Maximum Thrust (N)
- 3700
Operating Temperature (°C)
- -10° to +70° C
Operating Temperature (°F)
- +14° to +158° F
Position Repeatability (± Inch)
- 0.001 (Motor Inline) / 0.002 (Motor Parallel)
Position Repeatability (± mm)
- 0.03 (Motor Inline) / 0.05 (Motor Parallel)
Profile Width (mm)
- 46.5
Rod End Dimension
- ISO 32
Series
- ETH
- Factory Automation
- Pressing Applications
- Material Handling
- Valve and Flap Actuation
