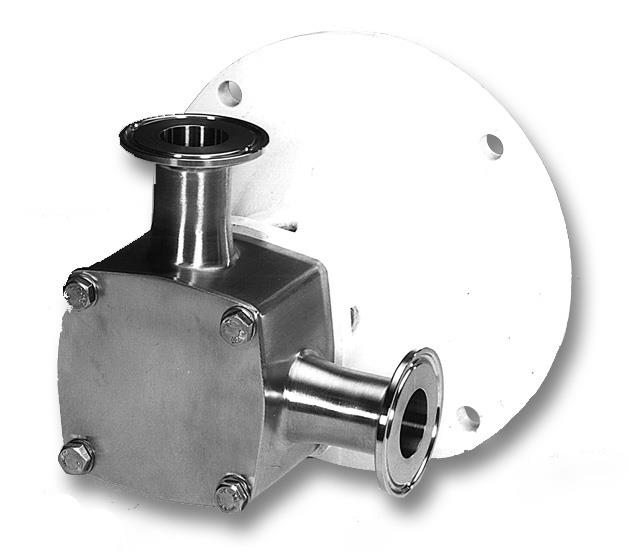

30560 Series Pump Head Kit
Brand: JabscoP80 Sanitary Stainless Steel Pump Head Kit.
Features- Handles soft solids - max. 12 mm diameter
- Certified to US 3A Standard 02-11
- Clean-In-Place (CIP) or easy strip clean
- Minimal shear to thixotropic fluids
- Easy to service and maintain
1 - 4 of 4 Part Numbers
1 - 4 of 4 Part Numbers
Specifications
Brand
Bearings
- Uses Motor Bearings
Body Material
- 316 Stainless Steel
Impeller
- 3-A Food Grade Neoprene or EPDM
Motor
- 1-1/2 hp, H145 TC Frame, C-Face, 1740 rpm, Can be Fitted
Port Type
- 1" ACME Threads with Bevel Seat or Clamp Typical
Pump / Motor Adapter
- Epoxy Coated Cast Iron
Seal
- Carbon / Ceramic Mechanical Typical
- Optional: Tungsten Carbide/Ceramic Hard-Faced Mechanical Seal
- Or Tungsten Carbide/Ceramic Hard-Faced Flushed Seal
Seal Elastomer
- Food Grade Nitrile
Shaft Material
- 316 Stainless Steel
Weight
- 5.5 kg (12.0 lb)
