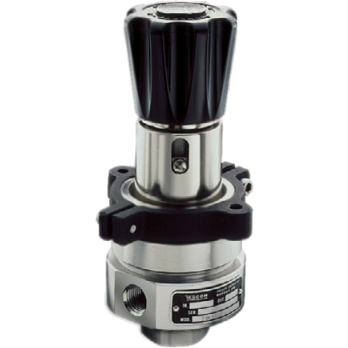

26-1600 Series Pressure Reducing Regulator
Brand: TESCOMTESCOM 26-1600 Series highly accurate, diaphragm sensed pressure reducing regulator offers adjustable venting standard.
Panel mounting, integrated 40 micron filter and low hand knob torque ensure a robust and adaptable design with many modifications available.
Features- Venting is standard (available with captured venting)
- Highly sensitive
- Features a non-rising stem and low operating torque
- Compact design
- Filter extends seat life
- Numerous porting options
- Panel mounting (bracket included)
- Easy maintenance with standard tools
- High flow Cv = 0.24 version is available (maximum inlet pressure: 3000 psig / 207 bar)
Specifications
Brand
Actuator Type
- Knob Adjust
Diaphragm Material
- Buna-N
Enclosure, Body Material
- 316 Stainless Steel
- Brass
Filter
- 40 microns
Flow Rate
- 0.08 Cv
Mounting
- Panel
MS (Military) Connection
- 1/2” Female MS33649
- 1/4” Female MS33649
- 3/8” Female MS33649
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 3/8” NPT Female
O-Ring Material
- Buna-N
Operating Temperature
- -40° to 74° C (-40° to 165° F)
Pressure Range
- bar: 0 to 34.47
- kPa: 0 to 3,447
- psig: 0 to 500
Pressure Rating
- ANSI B31.3
- ASME B31.3
SAE Connection
- 1/2” SAE Female
- 1/4” SAE Female
- 3/8” SAE Female
Seat / Seal Material
- Chlorotrifluoroethelene
- Teflon
Special Cleaning & Packaging
- ASTM G93
- CGA 4.1
Supply Pressure - Maximum
- bar: 345
- bar: 414
- kPa: 34,473
- kPa: 41,368
- psig: 5,000
- psig: 6,000
