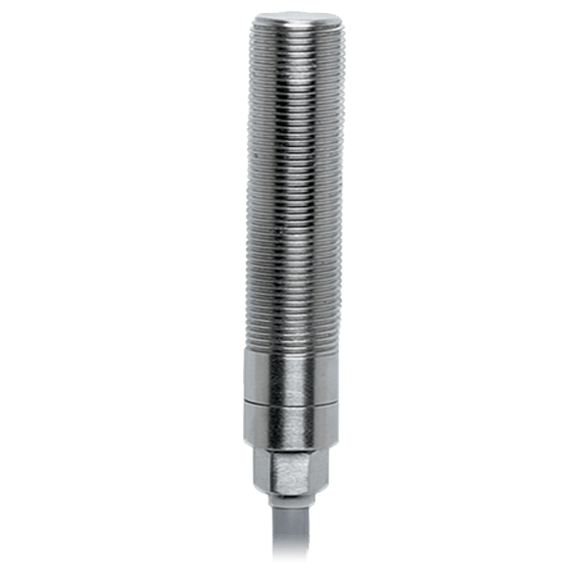

Model 76 GO Switch

The new armored cable option for the GO Switch model 76 improves reliability.

Now available with ATEX/IECEx ’d’ certification, the armored cable provides installation without an additional conduit for mechanical protection.

An integral fitting used to seal the switch - cable assembly for IP66 rating, eliminates the need for a cable gland.

The broad operating temperature range of -55°C to 100°C (-67°F to 212°F) provides a dependable solution for very cold temperature applications and is also available with flameproof area classifications.

These models are available with imperial (3/8", 5/8") or metric (M12, M18) threads. All GO Switches can be wired AC or DC, normally open (N/O) or normally closed (N/C), enhancing versatility and requires no power to operate.

Other accessories include target magnets, which increase the sensing distance up to 0.5" (12 mm).
